E3AS-L200 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K

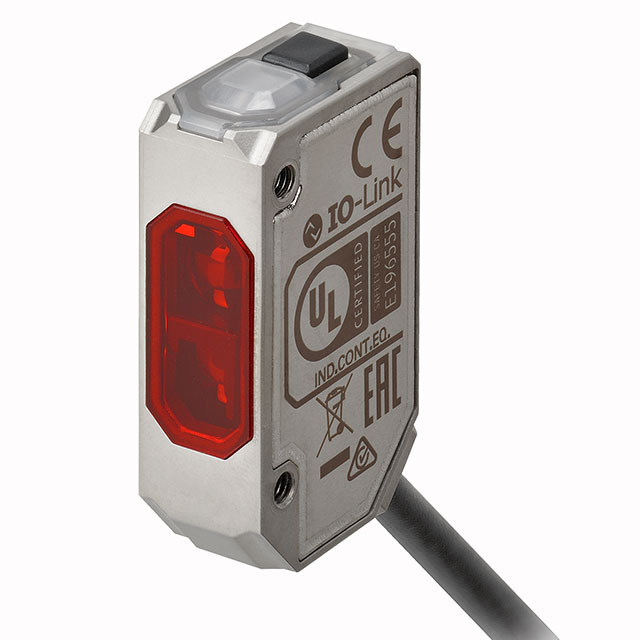

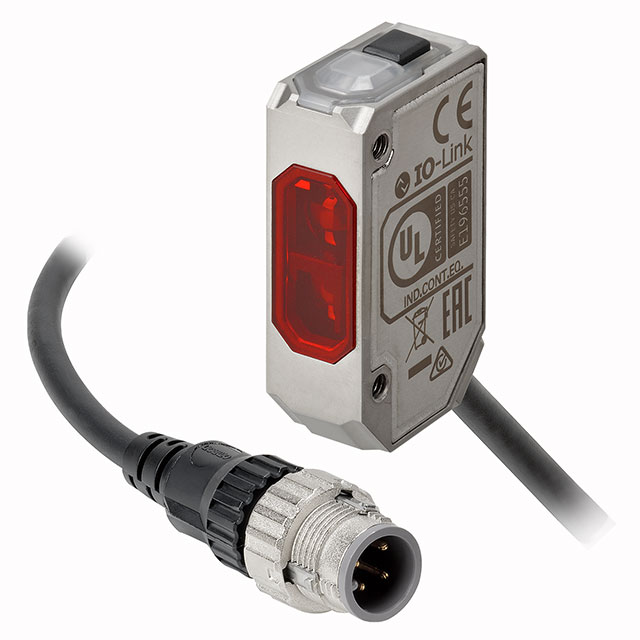

PHOTOELECTRIC SENSOR; BACKGROUND
| Part | Ingress Protection | Light Source | Sensing Method | Response Time | Adjustment Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Distance [Min] | Sensing Distance [Min] | Sensing Distance [Max] | Sensing Distance [Max] | Output Configuration | Connection Method | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | IEC 60529 IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | Teaching Method | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | PNP | Connector | ||
 Omron Automation and Safety | IEC 60529 IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | Teaching Method | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | PNP | Cable with Connector | 0.3 m | 11.81 " |
 Omron Automation and Safety | IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | PNP | Cable with Connector | 0.3 m | 11.81 " | |
 Omron Automation and Safety | IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | NPN | Cable | 2 m | 78.74 " | |
Omron Automation and Safety | IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | PNP | Cable | 2 m | 78.74 " | |
Omron Automation and Safety | IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | NPN | Cable with Connector | 0.3 m | 11.81 " | |
 Omron Automation and Safety | IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | NPN | Connector | |||
Omron Automation and Safety | IEC 60529 IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | Teaching Method | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | NPN | Cable with Connector | 0.3 m | 11.81 " |
Omron Automation and Safety | IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | PNP | Connector | |||
Omron Automation and Safety | IEC 60529 IP67 IP69K | Red (624nm) | Background Suppression | 1 ms | Teaching Method | 55 °C | -25 °C | 10 VDC | 30 VDC | 10 mm | 0.394 in | 7.874 " | 200 mm | PNP | Cable | 5 m | 196.85 in |
