DX07W024 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT USB3.1 TYPEC 24POS SMD
| Part | Contact Finish | Shell/Shielding Material | Insulation Color | Mating Cycles | Mounting Feature | Features | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Current Rating (Amps) | Mounting Type | Number of Contacts [custom] | Voltage - Rated | Connector Type | Gender | Number of Ports | Shielding | Specifications | Termination | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

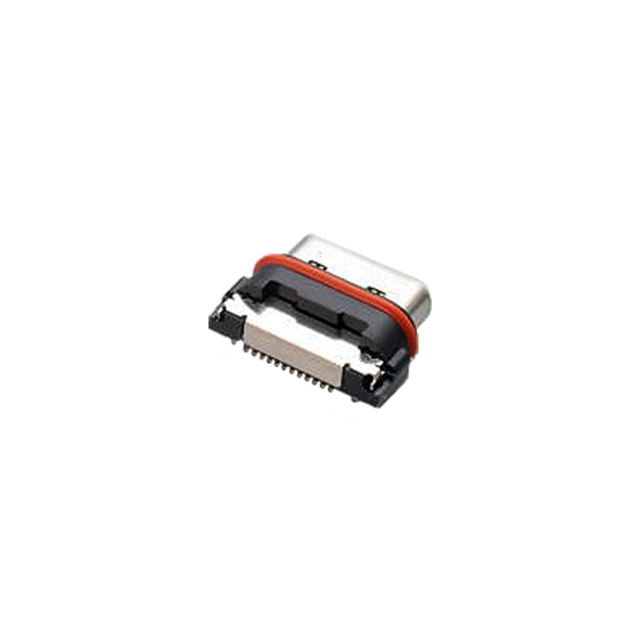

 JAE Electronics | Gold | Stainless Steel | Black | 10000 | Horizontal | Board Guide | 80 °C | -30 ░C | IPX8 - Waterproof | 0.25 A 1.25 A 5 A 6.25 A | Board Edge Right Angle Surface Mount | 24 | 48 VDC | USB-C (USB TYPE-C) | Receptacle | 1 | Shielded | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | Solder | |

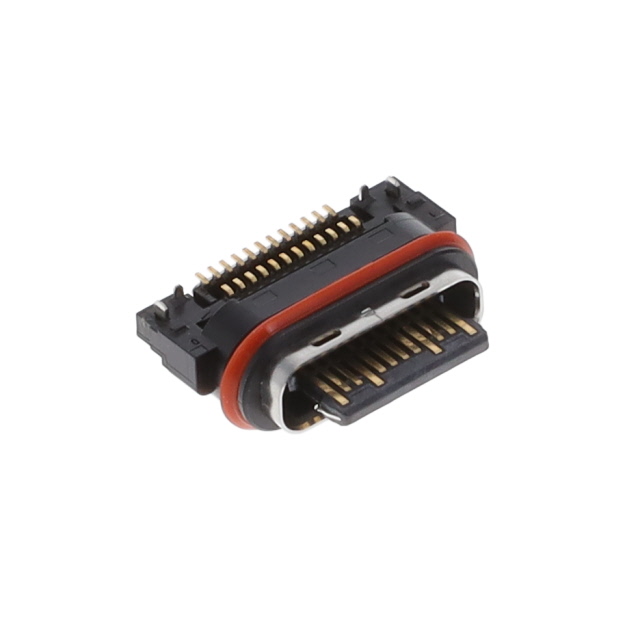

 JAE Electronics | Gold | Stainless Steel | Black | 10000 | Horizontal Mid Mount | Board Guide | 80 °C | -30 ░C | IPX8 - Waterproof | 0.25 A 1.25 A 5 A 6.25 A | Board Edge Right Angle Surface Mount | 24 | 48 VDC | USB-C (USB TYPE-C) | Receptacle | 1 | Shielded | USB 2.0 | Solder | UL94 V-0 |
