TUHW-88G Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

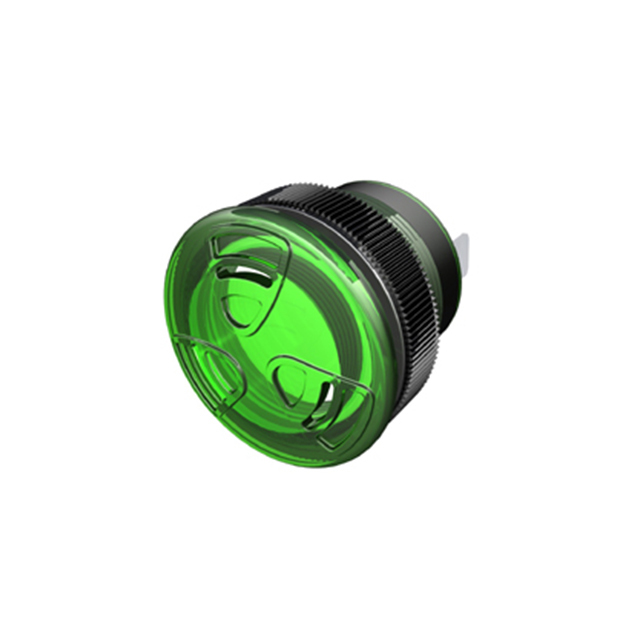

BUZZER 33.02MM PNL MNT
| Part | Current - Supply [Max] | Current - Supply [Min] | Sound Pressure Level (SPL) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Port Location | Frequency | Approval Agency | Mounting Type | Driver Circuitry | Ingress Protection | Input Type | Operating Mode | Termination | Termination | Termination | Voltage Range [Max] | Voltage Range [Min] | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 125 mA | 65 mA | 103 dB | 29.97 mm | 1.18 in | Top | 3 kHz | UL UR | Panel Mount | Indicator Internally Driven | IP68 - Dust Tight Waterproof | DC | Slow Warble | Quick Connect Tab | 0.25 " | 6.35 mm | 30 V | 9 V | 1.3 in | 33.02 mm |
Floyd Bell Inc | 125 mA | 65 mA | 103 dB | 29.97 mm | 1.18 in | Top | 3 kHz | UL UR | Panel Mount | Indicator Internally Driven | IP68 - Dust Tight Waterproof | DC | Warble Fast | Quick Connect Tab | 0.25 " | 6.35 mm | 30 V | 9 V | 1.3 in | 33.02 mm |
