SA1U-D01 Series
Manufacturer: IDEC
Beta
⌘K

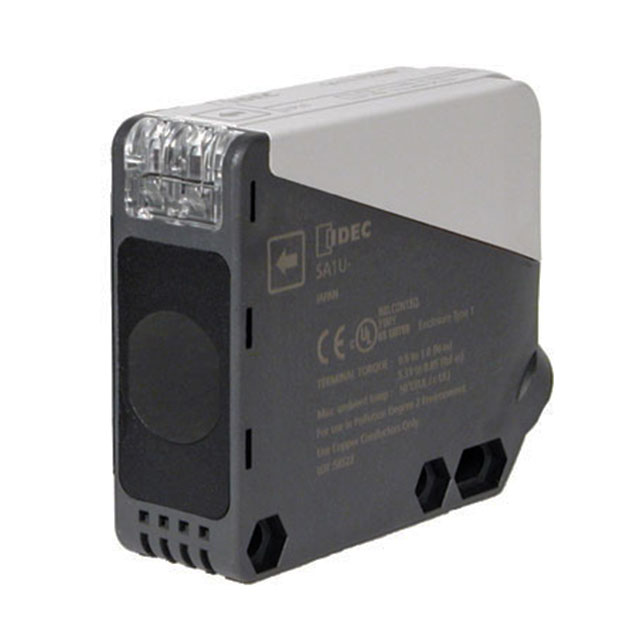

PHOTOELECTRIC SENSOR, SA1U SERIES, 1 M, DIFFUSE, RELAY, 10 V TO 30 V, TIME DELAY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Adjustment Type | Sensing Method | Output Configuration | Sensing Distance | Sensing Distance | Voltage - Supply [Min] | Voltage - Supply [Max] | Ingress Protection | Connection Method | Response Time | Light Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | -25 °C | 60 °C | Adjustable | Diffuse Reflective | SPDT | 1 m | 39.37 in | 12 VDC 24 V | 240 VDC 240 VAC | IP67 | Terminal Block | 20 ms | Infrared (870nm) |
 IDEC | -25 °C | 60 °C | Adjustable | Diffuse Reflective | SPDT | 1 m | 39.37 in | 12 VDC 24 V | 240 VDC 240 VAC | IP67 | Terminal Block | 20 ms | Infrared (870nm) |
