TXT-86 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER PIEZO 33.02MM PNL MNT
| Part | Termination | Termination | Termination | Operating Mode | Mounting Type | Driver Circuitry | Frequency | Ingress Protection | Voltage Range [Min] | Voltage Range [Max] | Technology | Port Location | Sound Pressure Level (SPL) | Approval Agency | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Input Type | Current - Supply [Max] | Current - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 0.25 " | Screw Terminal Quick Connect Tab | 6.35 mm | Staccato Tone | Panel Mount | Indicator Internally Driven | 2.9 kHz | IP68 - Dust Tight Waterproof | 5 VDC | 15 V | Piezo | Top | 103 dB | UL UR | 1.3 in | 33.02 mm | 29.97 mm | 1.18 in | DC | 50 mA | 10 mA |

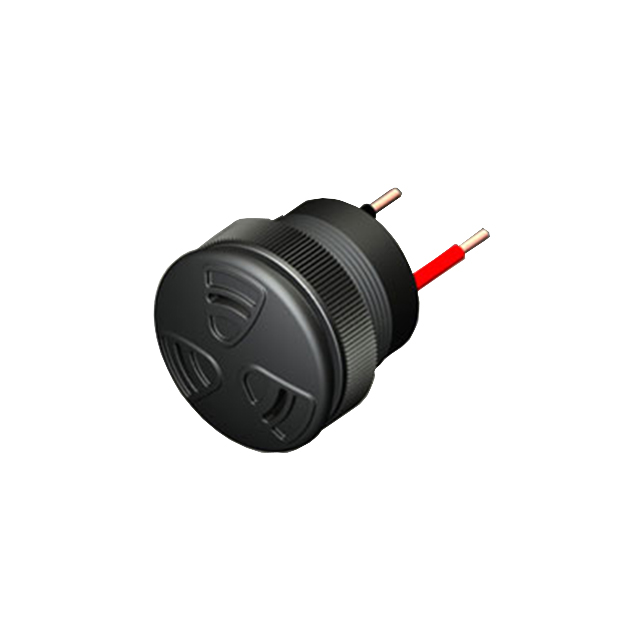

 Floyd Bell Inc | Wire Leads | Staccato Tone | Panel Mount | Indicator Internally Driven | 2.9 kHz | IP68 - Dust Tight Waterproof | 5 VDC | 15 V | Piezo | Top | 103 dB | UL UR | 1.3 in | 33.02 mm | 29.97 mm | 1.18 in | DC | 50 mA | 10 mA | ||

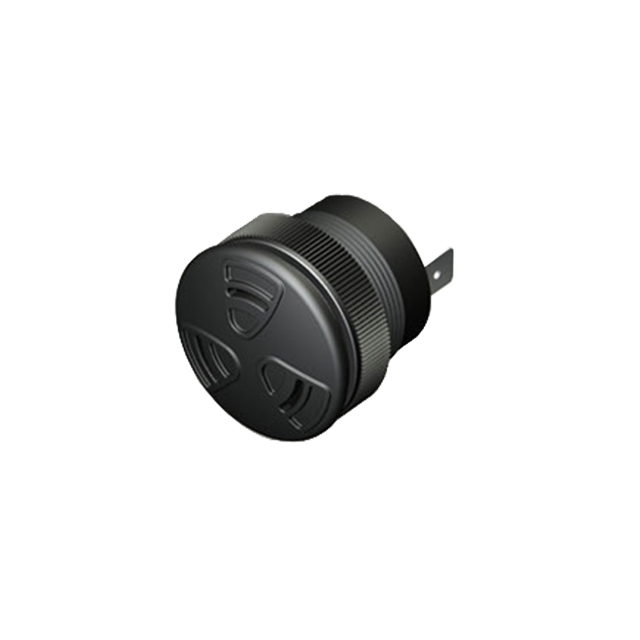

 Floyd Bell Inc | 0.25 " | Quick Connect Tab | 6.35 mm | Staccato Tone | Panel Mount | Indicator Internally Driven | 2.9 kHz | IP68 - Dust Tight Waterproof | 5 VDC | 15 V | Piezo | Top | 103 dB | UL UR | 1.3 in | 33.02 mm | 29.97 mm | 1.18 in | DC | 50 mA | 10 mA |
