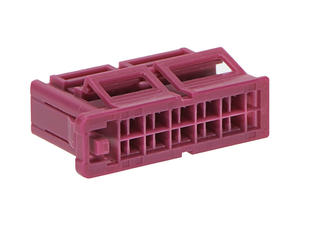

ConnTAK50 Tang Receptacle, Dual Row, 22 Circuits, Key D, Violet
ConnTAK50 Tang Receptacle, Dual Row, 22 Circuits, Key D, Violet
| Part | Number of Rows [custom] | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing | Row Spacing | Connector Type | Insulation Material | Color | Fastening Type | Mounting Type | Pitch | Pitch | Number of Positions | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

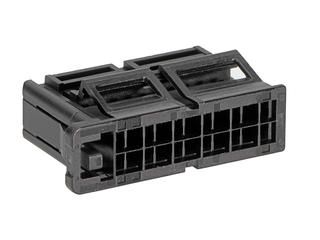

 Molex | 2 | Crimp | -40 C | 105 ░C | 0.059 in | 1.5 mm | Receptacle | Nylon Polyamide (PA) | Black | Locking Ramp | Panel Mount Snap-In | 1.8 mm | 0.071 in | 22 | Female Socket |
 Molex | 2 | Crimp | -40 C | 105 ░C | 0.059 in | 1.5 mm | Receptacle | Glass Filled Nylon 6 Polyamide (PA6) | Violet | Latch Holder | Panel Mount Snap-In | 1.8 mm | 0.071 in | 22 | Female Socket |

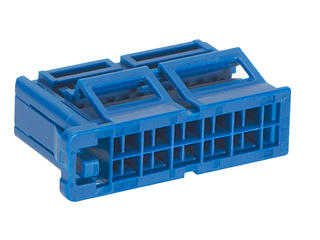

 Molex | 2 | Crimp | -40 C | 105 ░C | 0.059 in | 1.5 mm | Receptacle | Glass Filled Nylon 6 Polyamide (PA6) | Blue | Latch Holder | Panel Mount Snap-In | 1.8 mm | 0.071 in | 22 | Female Socket |
 Molex |
