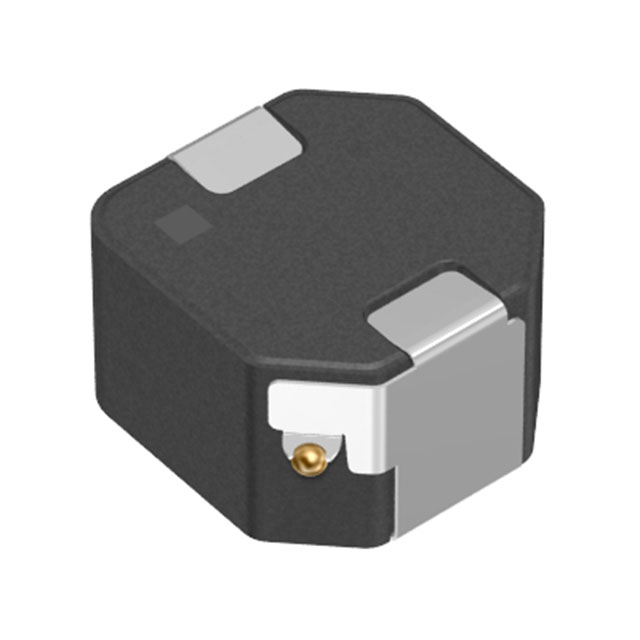

SPM6545VT Series

Catalog

FIXED IND 68UH 1.7A 0.34OHM SMD

Part	Current - Saturation (Isat)	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Mounting Type	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Ratings	DC Resistance (DCR)	Supplier Device Package	Current Rating (Amps)	Material - Core	Shielding	Package / Case
TDK Corporation SPM6545VT-680M-D	2.9 A	68 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	340 mOhm	6545	1.7 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-330M-D	3.2 A	33 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	132 mOhm	6545	2.7 A	Metal Composite	Shielded	Nonstandard

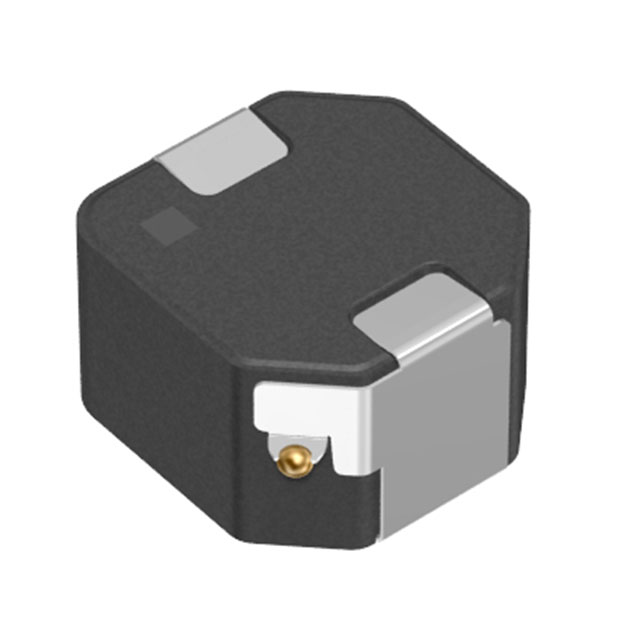

TDK Corporation SPM6545VT-2R2M-D	14.3 A	2.2 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	10.4 mOhm	6545	9.8 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-6R8M-D	8.6 A	6.8 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	36 mOhm	6545	5.2 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-220M-D	3.9 A	22 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	94.6 mOhm	6545	3.2 A	Metal Composite	Shielded	Nonstandard

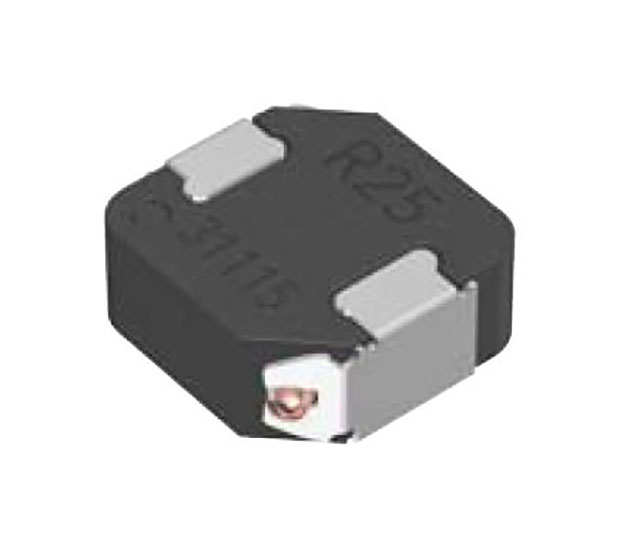

TDK Corporation SPM6545VT-100M-D	7.1 A	10 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	52.3 mOhm	6545	4.3 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-1R0M-D	17.9 A	1 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	5.6 mOhm	6545	13.3 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-150M-D	4.6 A	15 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	72 mOhm	6545	3.7 A	Metal Composite	Shielded	Nonstandard
TDK Corporation SPM6545VT-470M-D	3 A	47 µH	4.5 mm	0.177 in	20 %	Surface Mount	100 kHz	0.256 "	6.5 mm	0.276 "	7 mm	155 C	-55 C	Drum Core Wirewound	AEC-Q200	229 mOhm	6545	2.1 A	Metal Composite	Shielded	Nonstandard
