AW-20-03 Series

Board to Board & Mezzanine Connectors

Manufacturer: Samtec Inc.

Catalog

Board to Board & Mezzanine Connectors

Catalog

Board to Board & Mezzanine Connectors

Part	Contact Finish - Post (Mating)	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height [z]	Termination	Mounting Type	Number of Rows	Length - Stack Height [custom]	Length - Stack Height [custom]
Samtec Inc. AW-20-03-G-D-165-075-ES-P-TR	Gold	40	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.075 in	1.905 mm	4.7 mm	0.185 in	Solder	Surface Mount	2
Samtec Inc. AW-11-03-G-D-185-075-P	Gold	22 positions	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.075 in	1.905 mm	4.7 mm	0.185 in	Solder	Surface Mount	2

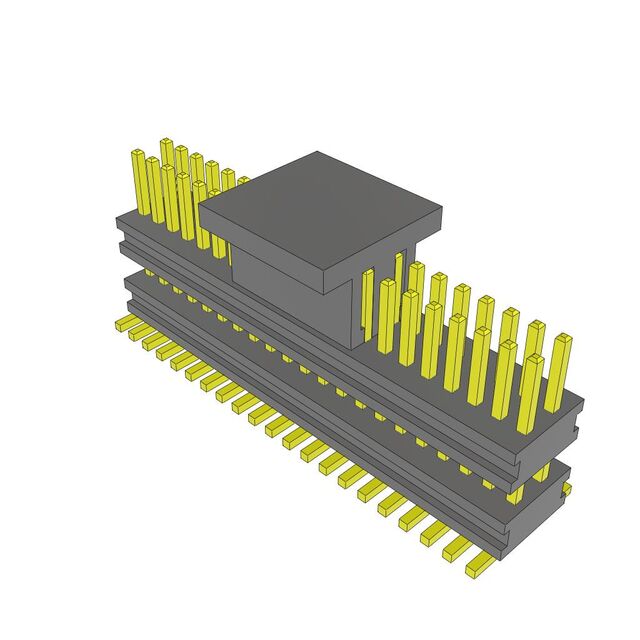

Samtec Inc. AW-21-03-G-D-165-093-A-P-TR	Gold	42	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.093 in	2.362 mm			Solder	Surface Mount	2	0.165 in	4.191 mm
Samtec Inc. AW-50-03-G-D-185-100-A	Gold	100	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.1 in	2.54 mm	4.7 mm	0.185 in	Solder	Surface Mount	2
Samtec Inc. AW-15-03-G-D-147-075-P-TR	Gold	30	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.075 in	1.905 mm	3.734 mm	0.147 in	Solder	Surface Mount	2
Samtec Inc. AW-25-03-G-D-122-115	Gold	50	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.115 in	2.921 mm	3.099 mm	0.122 in	Solder	Surface Mount	2
Samtec Inc. AW-07-03-G-D-185-110	Gold	14	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.11 in	2.794 mm	4.7 mm	0.185 in	Solder	Surface Mount	2
Samtec Inc. AW-21-03-G-D-165-090	Gold	42	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.09 in	2.286 mm			Solder	Surface Mount	2	0.165 in	4.191 mm

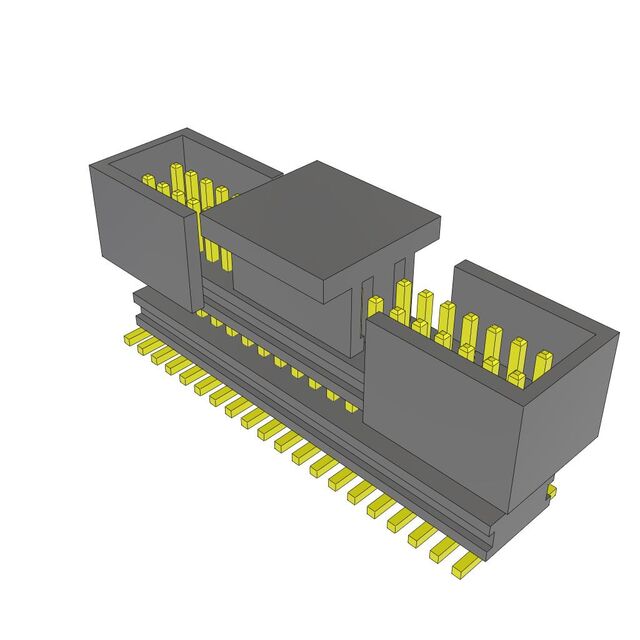

Samtec Inc. AW-20-03-G-D-170-075-ES-P-TR	Gold	40	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.075 in	1.905 mm	4.318 mm	0.17 in	Solder	Surface Mount	2
Samtec Inc. AW-10-03-G-D-195-090	Gold	20	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.09 in	2.286 mm	4.953 mm	0.195 in	Solder	Surface Mount	2
