PR20C04H Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
PIN HEADER, THR, DUAL ROW, 2.00
| Part | Contact Length - Post [custom] | Contact Length - Post | Contact Finish - Mating | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Insulation Material | Number of Rows [custom] | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Material | Contact Length - Mating | Contact Length - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Termination | Shrouding | Contact Type | Insulation Height [z] | Insulation Height [z] | Number of Positions | Contact Shape | Number of Positions Loaded | Connector Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

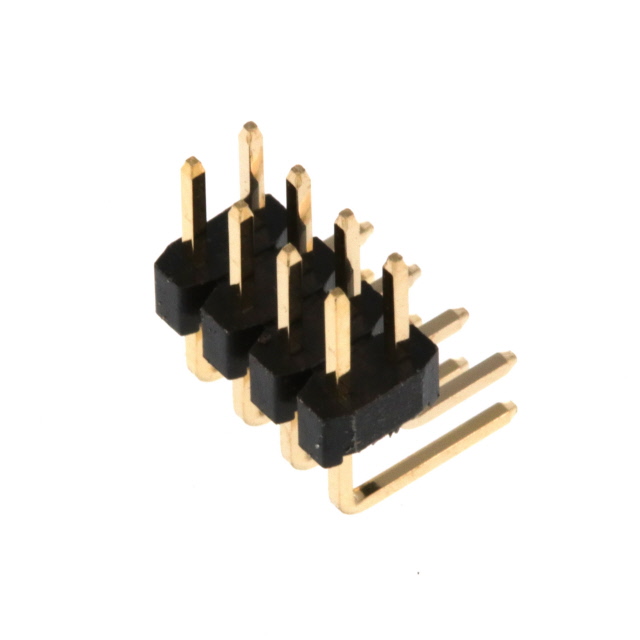

 METZ CONNECT USA Inc. | 0.11 in | 2.79 mm | Gold | Black | 2 mm | 0.079 in | Right Angle Through Hole | Polyethylene | 2 | Push-Pull | 0.079 " | 2 mm | Copper Zinc | 0.154 in | 3.91 mm | -55 C | 105 ░C | Flash | Solder | Unshrouded | Male Pin | 2 mm | 0.079 in | 8 | Square | All | Header | |

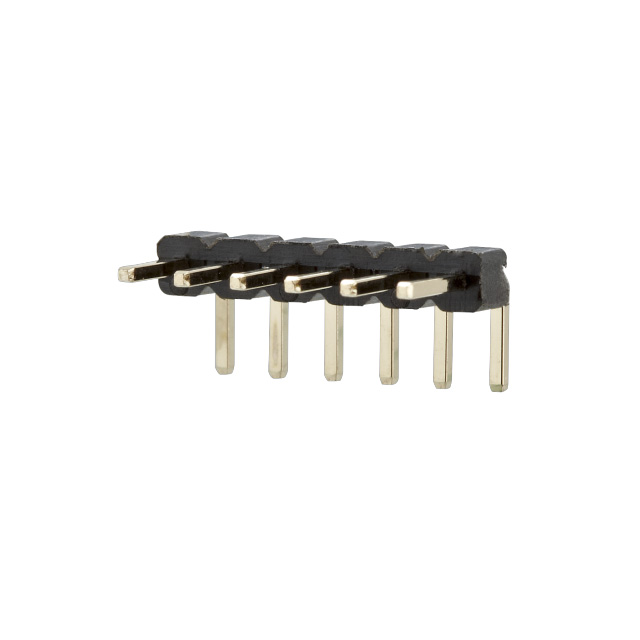

 METZ CONNECT USA Inc. | 0.11 in | 2.79 mm | Gold | Black | Right Angle Through Hole | Polyethylene | Push-Pull | 0.079 " | 2 mm | Copper Alloy | 0.154 in | 3.91 mm | -40 C | 105 ░C | Flash | Solder | Unshrouded | Male Pin | 2 mm | 0.079 in | 4 | Square | All | Header | 1 |
