MPXV Series

Manufacturer: KEMET

Catalog

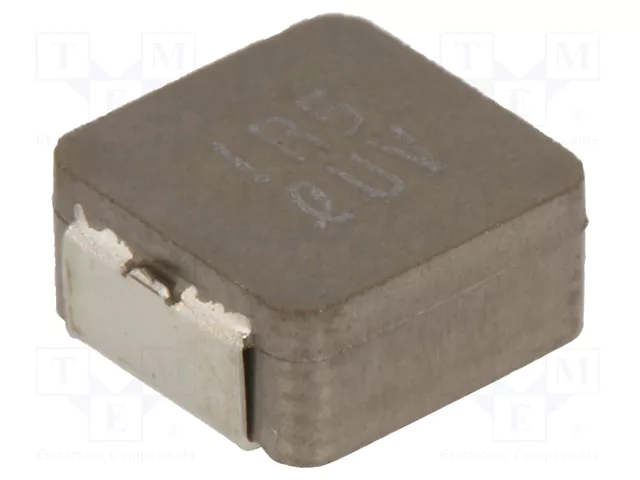

INDUCTOR POWER SHIELDED WIREWOUND 3.3UH 20% 100KHZ METAL 4.1A 0.0642OHM DCR 2220 T/R AUTOMOTIVE AEC-Q200

Part	Inductance Frequency - Test	Shielding	Current Rating (Amps)	Frequency - Self Resonant	Package / Case	Ratings	Tolerance	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Inductance	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Height - Seated (Max) [Max]	DC Resistance (DCR)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KEMET MPXV1D0520L3R3	100 kHz	Shielded	4.1 A	34 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.209 "	5 mm	0.197 "	5.3 mm	155 C	-55 C	Surface Mount	3.3 µH	64.2 mOhm	0.079 in	2 mm	5.5 A
KEMET MPXV1D1264L100	100 kHz	Shielded	12.2 A	8.5 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.52 in	12.5 mm	0.492 "	13.2 mm	155 C	-55 C	Surface Mount	10 µH		6.4 mm		14 A	0.252 in	16.1 mOhm
KEMET MPXV1D0650L1R0	100 kHz	Shielded	15.6 A	42 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.276 "	6.5 mm	0.256 "	7 mm	155 C	-55 C	Surface Mount	1 µH	6 mOhm	5 mm		13 A	0.197 in
KEMET MPXV1D0520L4R7	100 kHz	Shielded	3.4 A	26 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.209 "	5 mm	0.197 "	5.3 mm	155 C	-55 C	Surface Mount	4.7 ÁH		0.079 in	2 mm	4.5 A		96.6 mOhm
KEMET MPXV1D2213L100	100 kHz	Shielded	34 A	5.2 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.886 in	22 mm	0.866 in	22.5 mm	155 C	-55 C	Surface Mount	10 µH				36 A		4.4 mOhm	0.512 "	13 mm
KEMET MPXV1D1235L3R3	100 kHz	Shielded	12.5 Amps	18 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.52 in	12.5 mm	0.492 "	13.2 mm	155 C	-55 C	Surface Mount	3.3 µH	12.2 mOhm			18 A			0.138 "	3.5 mm
KEMET MPXV1D0618LR33	100 kHz	Shielded	12.7 A	96 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.276 "	6.5 mm	0.256 "	7 mm	155 C	-55 C	Surface Mount	330 nH	6.1 mOhm	1.8 mm		20 A	0.071 in
KEMET MPXV1D0840L1R5	100 kHz	Shielded	16.2 A	29 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.341 in	8 mm	0.315 in	8.65 mm	155 C	-55 C	Surface Mount	1.5 µH				19 A	0.157 in	6.8 mOhm			4 mm
KEMET MPXV1D1054LR68	100 kHz	Shielded	27.6 A	38 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.425 in	10 mm	0.394 in	10.8 mm	155 C	-55 C	Surface Mount	0.68 µH		5.4 mm		37.5 A	0.213 in	2.3 mOhm
KEMET MPXV1D1054L3R3	100 kHz	Shielded	14.4 A	17 MHz	Nonstandard	AEC-Q200	20 %	Metal Composite	0.425 in	10 mm	0.394 in	10.8 mm	155 C	-55 C	Surface Mount	3.3 µH	8.4 mOhm	5.4 mm		15 A	0.213 in
