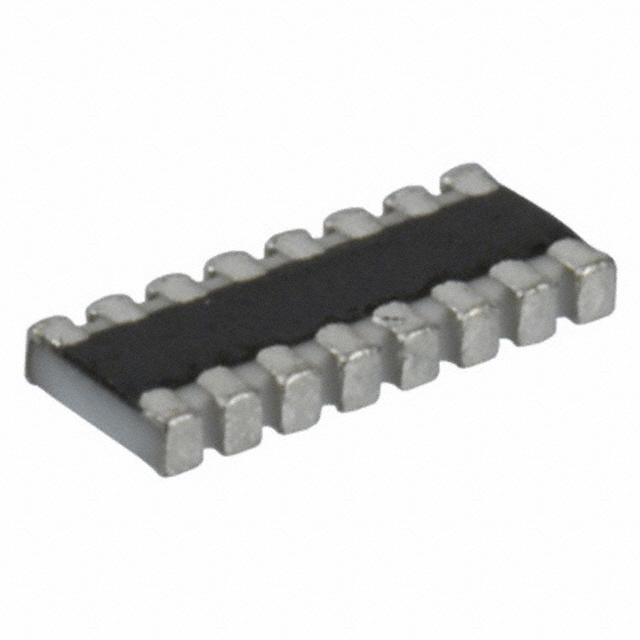

741X163 Series

Catalog

RES ARRAY 8 RES 4.7K OHM 1506

Part	Number of Pins	Tolerance	Power Per Element	Grade	Applications	Resistance (Ohms) [custom]	Circuit Type	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Qualification	Number of Resistors	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance (Ohms)	Resistance (Ohms)
CTS Resistor Products 741X163472J	16	5 %	63 mW	Automotive	DDR SDRAM DRAM MDDR	4.7 kOhms	Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in
CTS Resistor Products 741X163222JP	16	5 %	63 mW	Automotive	DDR SDRAM DRAM MDDR		Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in	2.2 kOhms
CTS Resistor Products 741X163472JPC8	16	5 %	63 mW	Automotive	DDR SDRAM DRAM MDDR	4.7 kOhms	Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in
CTS Resistor Products 741X163680JP	16	5 %	63 mW	Automotive	DDR SDRAM DRAM MDDR		Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in	68 Ohms
CTS Resistor Products 741X163750JP	16	5 %	63 mW	Automotive	DDR SDRAM DRAM MDDR		Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in	75 Ohms
CTS Resistor Products 741X1633300FP	16	1 %	63 mW	Automotive	DDR SDRAM DRAM MDDR	330 Ohms	Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in
CTS Resistor Products 741X163430JP	16	5 %	63 mW	Automotive	DDR SDRAM DRAM MDDR	43 Ohms	Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in
CTS Resistor Products 741X163560J	16	5 %	63 mW	Automotive	DDR SDRAM DRAM MDDR	56 Ohms	Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in
CTS Resistor Products 741X1631003FP	16	1 %	63 mW	Automotive	DDR SDRAM DRAM MDDR		Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in		100k
CTS Resistor Products 741X163100J	16	5 %	63 mW	Automotive	DDR SDRAM DRAM MDDR	10 Ohms	Isolated	200 ppm/°C	0.55 mm	0.022 in	-55 C	125 °C	1506 Convex Long Side Terminals	Surface Mount	AEC-Q200	8	3.95 mm	1.6 mm	0.063 "	0.156 in
