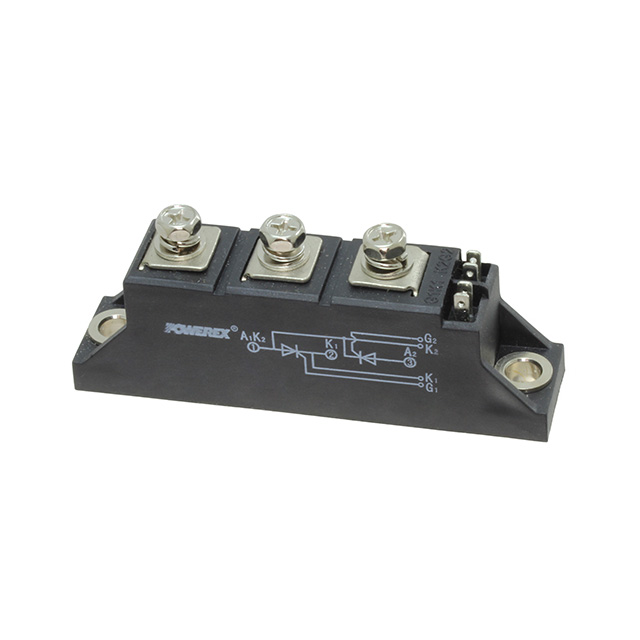

CD431699 Series
Manufacturer: Powerex Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SCR MODULE DUAL
| Part | Structure | Current - Hold (Ih) (Max) | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge Type | Current - Non Rep. Surge (Itsm) | Package / Case | Number of SCRs | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Gate Trigger (Vgt) (Max) | Voltage - Off State | Mounting Type | Current - On State (It (RMS)) (Max) | Current - Gate Trigger (Igt) (Max) | Current - On State (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Powerex Inc. | Series Connection - All SCRs | 150 mA | 50Hz 60Hz | Itsm | 2.4 kA | POW-R-BLOK™ Module | 2 count | 125 °C | -40 °C | 2.5 V | 1.6 kV | Chassis Mount | 173 A | 100 mA | 110 A |
