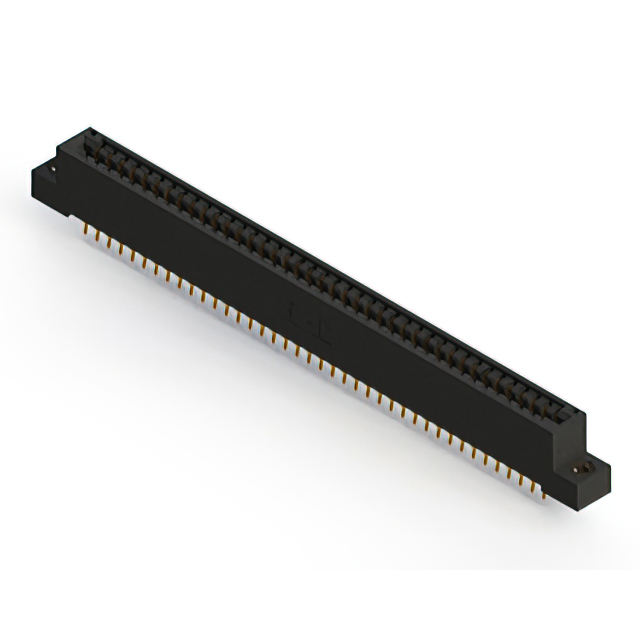

396-080 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 80POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Contact Type | Number of Rows [custom] | Termination | Card Type | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Mounting Type | Read Out | Color | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions/Bay/Row [custom] | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Wire Wrap | Non Specified - Dual Edge | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.18 mm | 0.125 in | Through Hole | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Solder | Non Specified - Dual Edge | Female | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.18 mm | 0.125 in | Through Hole | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Solder | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | 3.18 mm | 0.125 in | Board Edge Straddle Mount | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Solder | Non Specified - Dual Edge | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | -40 C | 105 ░C | 3.18 mm | 0.125 in | Board Edge Straddle Mount | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Wire Wrap | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | 3.18 mm | 0.125 in | Through Hole | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Wire Wrap | Non Specified - Dual Edge | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | -40 C | 105 ░C | 3.18 mm | 0.125 in | Through Hole | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Solder Wire Wrap | Non Specified - Dual Edge | Female | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.18 mm | 0.125 in | Right Angle Through Hole | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Solder | Non Specified - Dual Edge | Female | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.18 mm | 0.125 in | Through Hole | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Solder | Non Specified - Dual Edge | Female | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | 3.18 mm | 0.125 in | Through Hole | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 2 | Solder | Non Specified - Dual Edge | Female | 0.128 " | 3.25 mm | -40 C | 105 ░C | 3.18 mm | 0.125 in | Through Hole | Dual | Black | 80 | 0.25 Ám | 10 Áin | Copper Alloy | 40 | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
