6136.0241 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

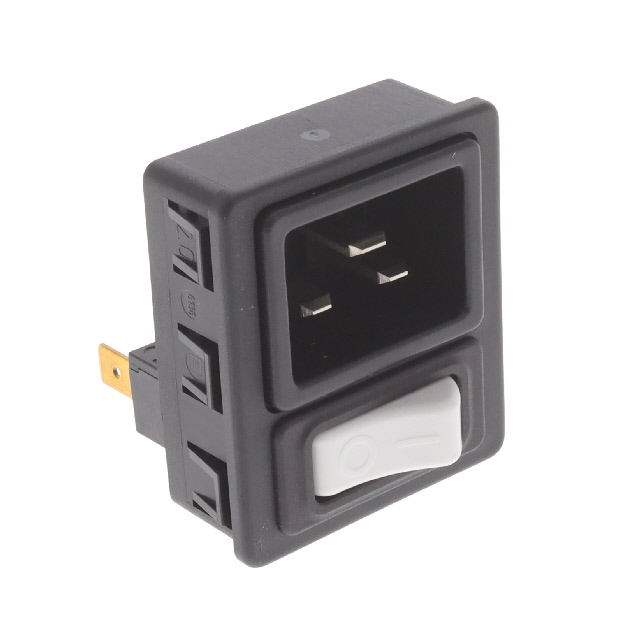

PWR ENT MOD RCPT IEC320-C20 PNL
| Part | Ingress Protection | Accomodates a Fuse | Switch Features | Connector Type | Voltage Rating - Appliance Inlet | Mounting Type | Filter Type | Termination | Termination | Termination | Approval Agency | Current Rating - Appliance Inlet | Connector Style | Panel Thickness | Panel Thickness | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | IP40 | Circuit Breaker Switch On-Off | Receptacle Male Blades - Module | 250 VAC | Panel Mount Snap-In | Unfiltered - Commercial | 6.3 mm | Quick Connect | 0.25 " | CCC cULus ENEC | 16 A | IEC 320-C20 | 0.098 in | 2.5 mm | 50.8 mm | 43.2 mm | UL94 V-0 | |
 SCHURTER Inc. | IP40 | Circuit Breaker Switch On-Off | Receptacle Male Blades - Module | 250 VAC | Panel Mount Snap-In | Unfiltered - Commercial | 6.3 mm | Quick Connect | 0.25 " | CCC cULus ENEC | 16 A | IEC 320-C20 | 0.079 in | 2 mm | 50.8 mm | 43.2 mm | UL94 V-0 |
