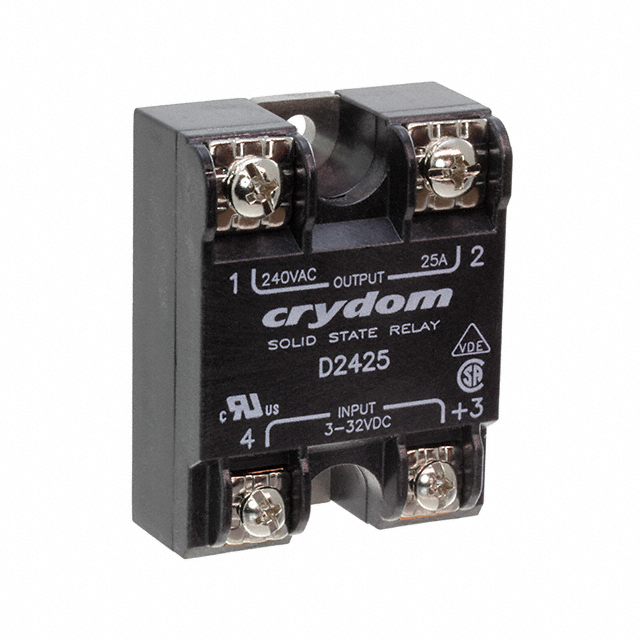

D2425 Series

Catalog

SSR RELAY SPST-NO 25A 24-140V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Package / Case	Mounting Type	Termination Style	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Load Current	Circuit	Termination Style
Sensata-Crydom D2425K-B	80 °C	-40 C	CE CSA TUV UL	Hockey Puck	Chassis Mount	Screw Terminal	AC Zero Cross	24 V	140 V	3 V	32 VDC	25 A

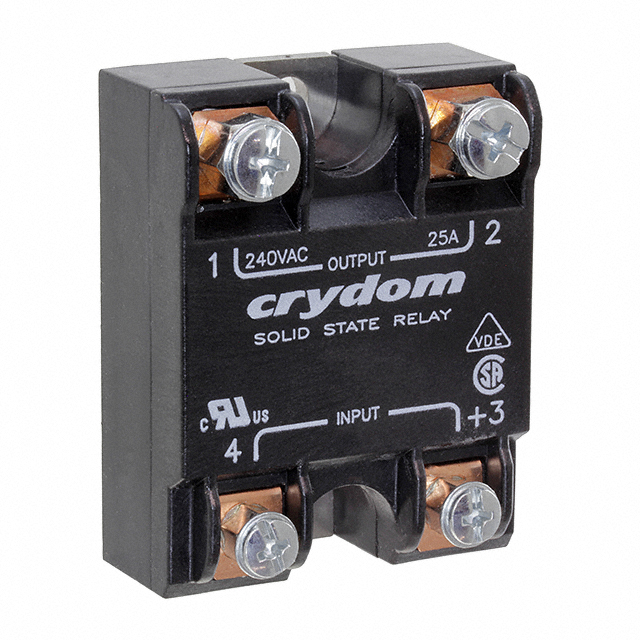

Sensata-Crydom D2425KT-B	100 °C	-40 C	CE CSA cURus TUV	Hockey Puck	Chassis Mount	Screw Terminal	AC Zero Cross	24 V	280 V	3 V	32 VDC	25 A	SPST-NC (1 Form B)
Sensata-Crydom D2425K-10	80 °C	-40 C	CE CSA TUV UL	Hockey Puck	Chassis Mount	Screw Terminal	AC	24 V	280 V	3 V	32 VDC	25 A
Sensata-Crydom D2425G-10	80 °C	-40 C	CE CSA TUV UL	Hockey Puck	Chassis Mount	Screw Terminal	AC	24 V	280 V	3 V	32 VDC	25 A
Sensata-Crydom D2425P	80 °C	-40 C	CE CSA TUV UL	Hockey Puck	Chassis Mount	Screw Terminal	AC Zero Cross	24 V	280 V	3 V	32 VDC	25 A

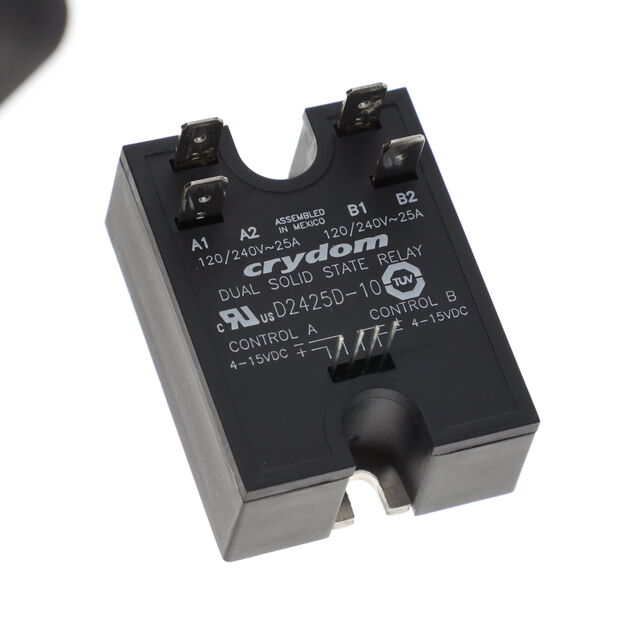

Sensata-Crydom D2425D-10	80 °C	-40 C	CE CSA TUV UL	Hockey Puck	Chassis Mount	Quick Connect - 0.250" (6.3mm)	AC	24 V	280 V	4 V	15 V	25 A	SPST-NO (1 Form A) x 2
Sensata-Crydom D2425KT	100 °C	-40 C	CE CSA cURus TUV	Hockey Puck	Chassis Mount	Screw Terminal	AC Zero Cross	24 V	280 V	3 V	32 VDC	25 A
Sensata-Crydom D2425KP	80 °C	-40 C	CE CSA TUV UL	Hockey Puck	Chassis Mount	Screw Terminal	AC Zero Cross	24 V	280 V	3 V	32 VDC	25 A
Sensata-Crydom D2425G	80 °C	-40 C	CE CSA TUV UL	Hockey Puck	Chassis Mount	Screw Terminal	AC Zero Cross	24 V	280 V	3 V	32 VDC	25 A

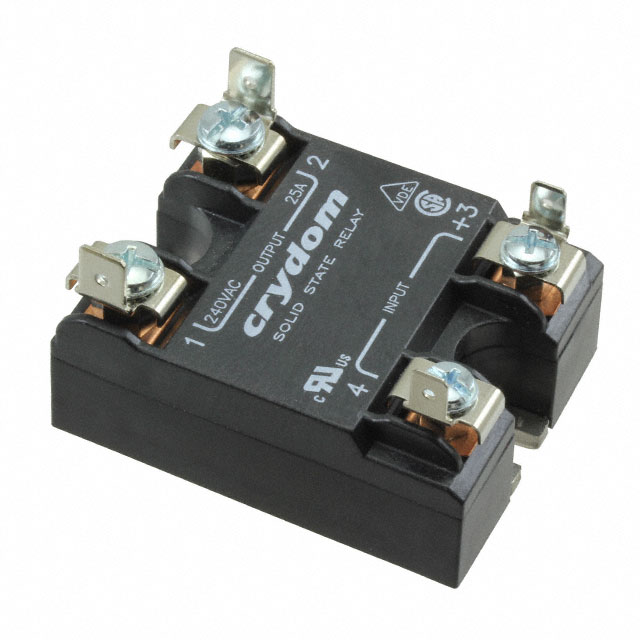

Sensata-Crydom D2425F	80 °C	-40 C	CE CSA TUV UL	Hockey Puck	Chassis Mount	Quick Connect	AC Zero Cross	24 V	280 V	3 V	32 VDC	25 A		0.187 in 0.25 in
