PRPN031 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

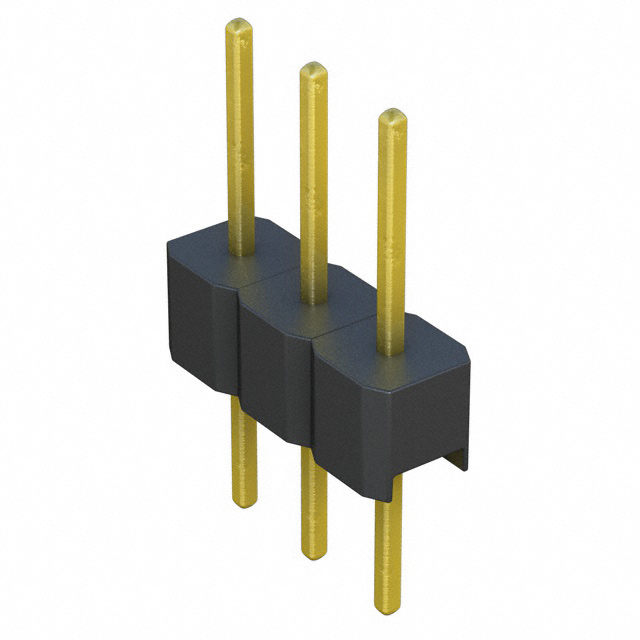

CONN HEADER VERT 3POS 2MM
| Part | Fastening Type | Termination | Contact Finish Thickness - Mating | Insulation Material | Contact Length - Post [custom] | Contact Length - Post | Contact Shape | Number of Positions Loaded | Shrouding | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Material | Material Flammability Rating | Contact Finish - Post | Number of Rows | Overall Contact Length | Overall Contact Length | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height [z] | Insulation Height [z] | Contact Type | Style | Mounting Type | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Push-Pull | Solder | Flash | Polyester | 0.11 in | 2.79 mm | Square | All | Unshrouded | Black | 0.079 " | 2 mm | Gold | Brass | UL94 V-0 | Gold | 1 | 8.8 mm | 0.346 in | Header | -40 C | 105 ░C | 2 mm | 0.079 in | Male Pin | Board to Board Cable | Through Hole | 4 mm | 0.157 in | Flash |
 Sullins Connector Solutions | Push-Pull | Solder | Flash | Polyester | 0.11 in | 2.79 mm | Square | All | Unshrouded | Black | 0.079 " | 2 mm | Gold | Brass | UL94 V-0 | Gold | 1 | Header | -40 C | 105 ░C | 2 mm | 0.079 in | Male Pin | Board to Board Cable | Right Angle Through Hole | 4 mm | 0.157 in | Flash |
