MP2361 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

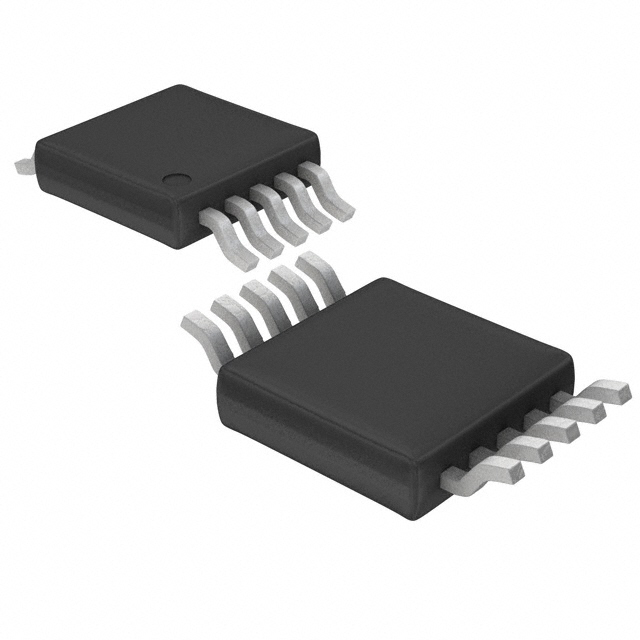

CONV DC-DC SINGLE STEP DOWN 4.75V TO 23V 10-PIN MSOP

Part	Output Configuration	Number of Outputs	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Mounting Type	Current - Output	Frequency - Switching	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Input (Min) [Min]	Function	Topology
Monolithic Power Systems Inc. MP2361DK-LF-Z	Positive	1	Adjustable	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	85 C	-40 ¯C	16 V	0.92 V	Surface Mount	2 A	1.4 MHz	23 V	10-MSOP	4.75 V	Step-Down	Buck
Monolithic Power Systems Inc. MP2361DK-LF-P	Positive	1	Adjustable	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	85 C	-40 ¯C	16 V	0.92 V	Surface Mount	2 A	1.4 MHz	23 V	10-MSOP	4.75 V	Step-Down	Buck
Monolithic Power Systems Inc. MP2361DH-LF-Z	Positive	1	Adjustable	10-MSOP 10-TFSOP Exposed Pad	85 C	-40 ¯C	16 V	0.92 V	Surface Mount	2 A	1.4 MHz	23 V	10-MSOP-EP	4.75 V	Step-Down	Buck
Monolithic Power Systems Inc. MP2361DH-LF	Positive	1	Adjustable	10-MSOP 10-TFSOP Exposed Pad	85 C	-40 ¯C	16 V	0.92 V	Surface Mount	2 A	1.4 MHz	23 V	10-MSOP-EP	4.75 V	Step-Down	Buck
Monolithic Power Systems Inc. MP2361DQ-LF-P	Positive	1	Adjustable	10-VFDFN Exposed Pad	85 C	-40 ¯C	16 V	0.92 V	Surface Mount	2 A	1.4 MHz	23 V	10-QFN (3x3)	4.75 V	Step-Down	Buck
Monolithic Power Systems Inc. MP2361DQ-LF-Z	Positive	1	Adjustable	10-VFDFN Exposed Pad	85 C	-40 ¯C	16 V	0.92 V	Surface Mount	2 A	1.4 MHz	23 V	10-QFN (3x3)	4.75 V	Step-Down	Buck
Monolithic Power Systems Inc. MP2361DK-LF	Positive	1	Adjustable	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	85 C	-40 ¯C	16 V	0.92 V	Surface Mount	2 A	1.4 MHz	23 V	10-MSOP	4.75 V	Step-Down	Buck
