845-114 Series
Manufacturer: EDAC Inc.
Beta
⌘K

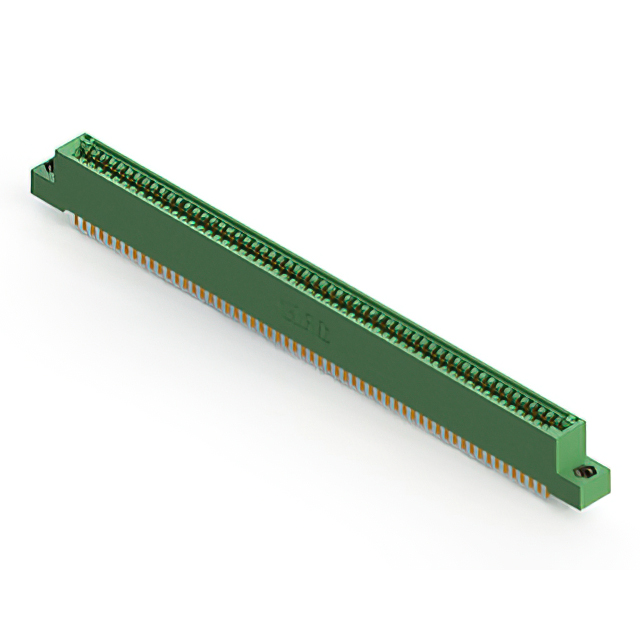

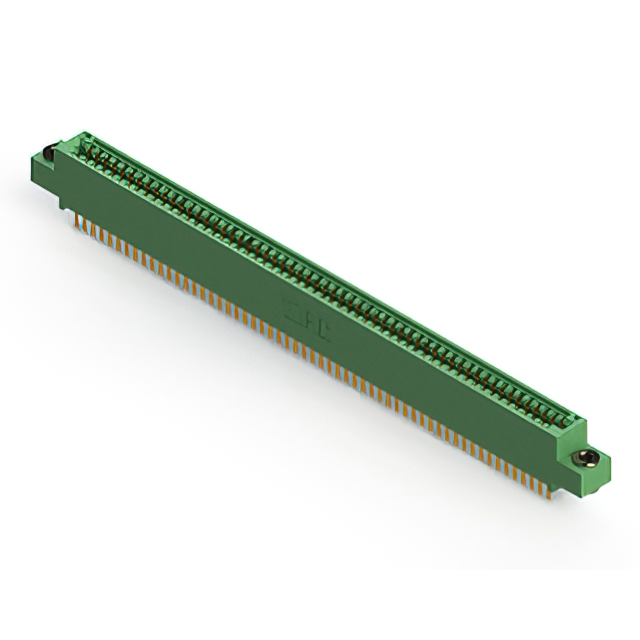

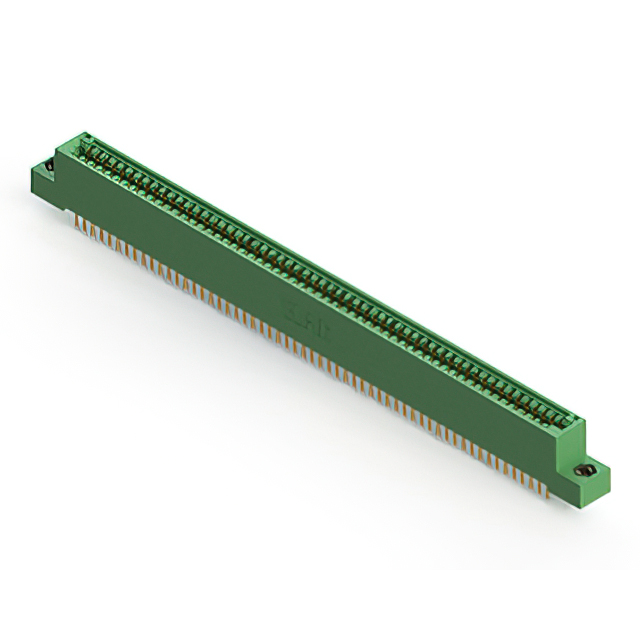

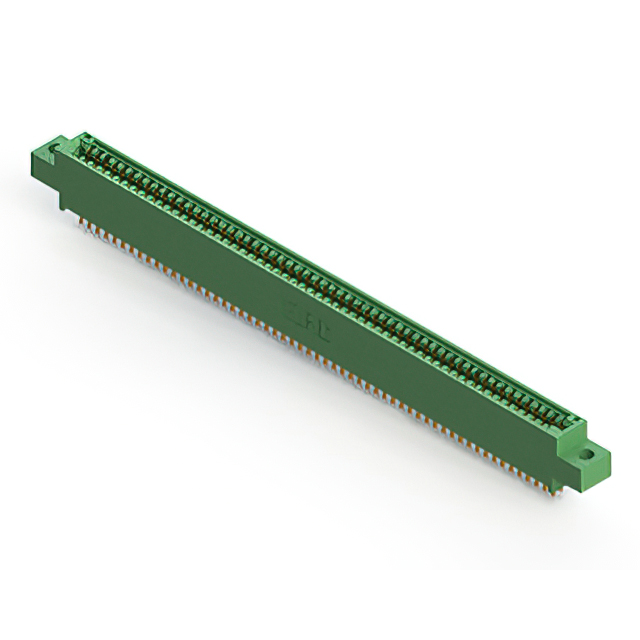

CONN EDGE DUAL FML 114POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Read Out | Contact Finish Thickness | Contact Finish Thickness | Card Type | Color | Number of Positions/Bay/Row [custom] | Number of Positions | Pitch | Pitch | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Features | Contact Material | Contact Finish | Flange Feature | Termination | Contact Type | Mounting Type | Gender | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Copper Alloy | Gold | 4-40 Threaded Insert Top Mount Opening | Solder | Cantilever | Board Edge Straddle Mount | Female | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Side Mount Opening Unthreaded | Solder Eyelet(s) | Cantilever | Through Hole | Female | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Flush Mount M3 Threaded Insert Top Opening | Wire Wrap | Cantilever | Through Hole | Female | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Cantilever | Through Hole | Female | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Copper Alloy | Gold | 4-40 Threaded Insert Top Mount Opening | Solder | Cantilever | Board Edge Straddle Mount | Female | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Copper Alloy | Gold | Solder | Cantilever | Board Edge Straddle Mount | Female | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Cantilever | Right Angle Through Hole | Female | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Copper Alloy | Gold | Side Mount Opening Unthreaded | Solder | Cantilever | Board Edge Straddle Mount | Female | 0.128 " | 3.25 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Solder | Cantilever | Through Hole | Female | 0.128 " | 3.25 mm | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Green | 57 | 114 | 0.1 " | 2.54 mm | 2 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Gold | Floating Bobbin Top Mount Opening | Wire Wrap | Cantilever | Through Hole | Female | 0.116 " | 2.95 mm |
