M20-788 Series

Catalog

5+5 POS. FEMALE DIL HORIZONTAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Part	Contact Material	Applications	Insulation Material	Contact Shape	Number of Positions	Connector Type	Mounting Type	Fastening Type	Current Rating (Amps)	Contact Type	Contact Finish - Post	Termination	Number of Positions Loaded	Contact Finish - Mating	Material Flammability Rating	Number of Rows [custom]	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Style

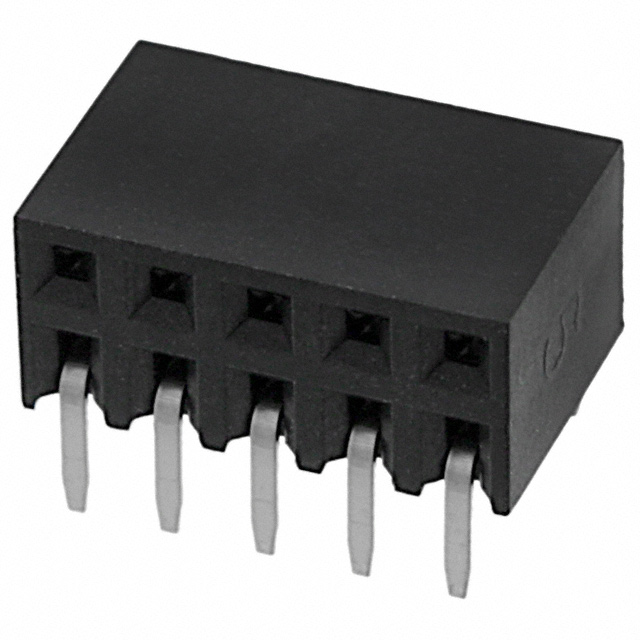

Harwin Inc. M20-7880542	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	10	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All	Gold	UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable
Harwin Inc. M20-7880242	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	4	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All	Gold	UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable
Harwin Inc. M20-7881042	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	20	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All	Gold	UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable
Harwin Inc. M20-7880442	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	8	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All	Gold	UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable
Harwin Inc. M20-7880446	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	8	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All		UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable

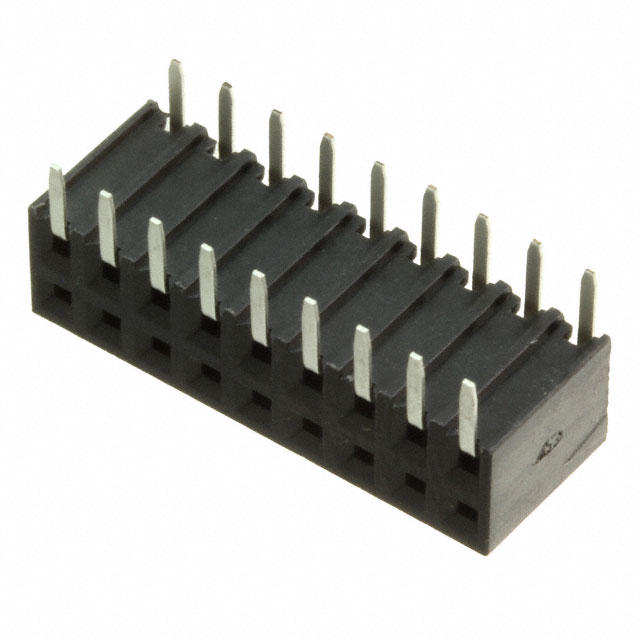

Harwin Inc. M20-7880946	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	18	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All		UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable

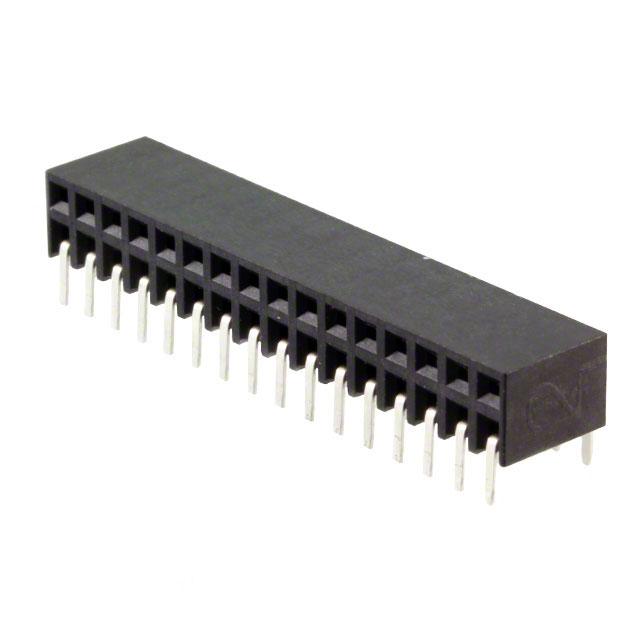

Harwin Inc. M20-7881642	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square		Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All	Gold	UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable
Harwin Inc. M20-7881446	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	28	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All		UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable

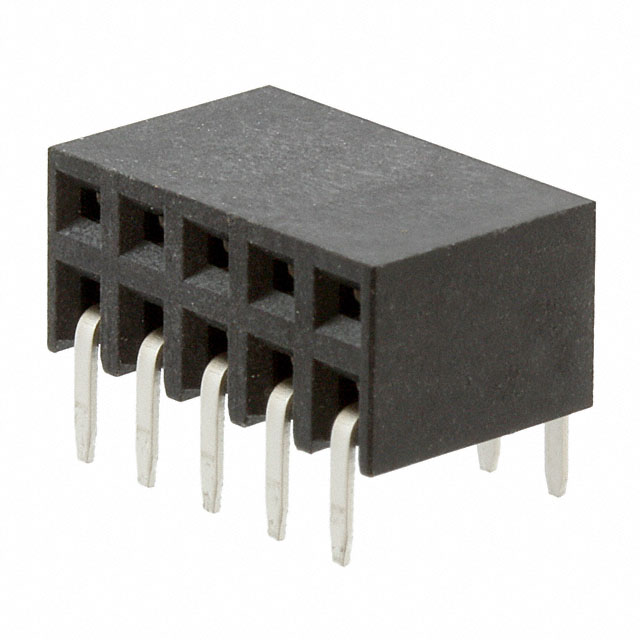

Harwin Inc. M20-7880546	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	10	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All		UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable

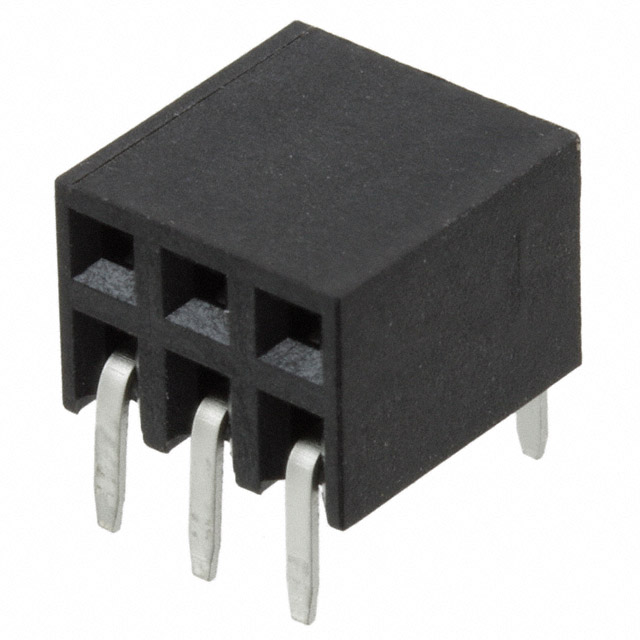

Harwin Inc. M20-7880346	Phosphor Bronze	General Purpose Industrial Telecommunications	Nylon 6T Polyamide (PA6T)	Square	6	Receptacle	Right Angle Through Hole	Push-Pull	3 A	Female Socket	Tin	Solder	All		UL94 V-0	2	Black	0.1 "	2.54 mm	5.9 mm	0.232 in	1000 VDC	-40 C	105 ░C	0.1 in	2.54 mm	0.118 in	3 mm	Board to Board Cable
