4606 Series

Catalog

AC FANS TUBEAXIAL FAN, 119X119X38MM, 115VAC, 106CFM, 18W, 51DBA, 3100RPM, TERMINAL, IP20

Part	Lifetime @ Temp.	Material - Blade	Material - Frame	Air Flow	Air Flow	Width [y]	Fan Type	Power (Watts)	RPM	Ingress Protection	Voltage - Rated	Termination	Weight [custom]	Weight [custom]	Bearing Type	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Width [x]	Size / Dimension [diameter]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]
ebm-papst Inc. 4606N	40000 Hrs	Metal	Metal	2.97 m³/min	106 CFM	38 mm	Tubeaxial	18 W	3100 RPM	IP20	115 VAC	2	544.3 g	1.2 lbs	Ball	51 dB(A)	-40 C	90 °C	Square	119 mm	119 mm	CE CSA UL VDE

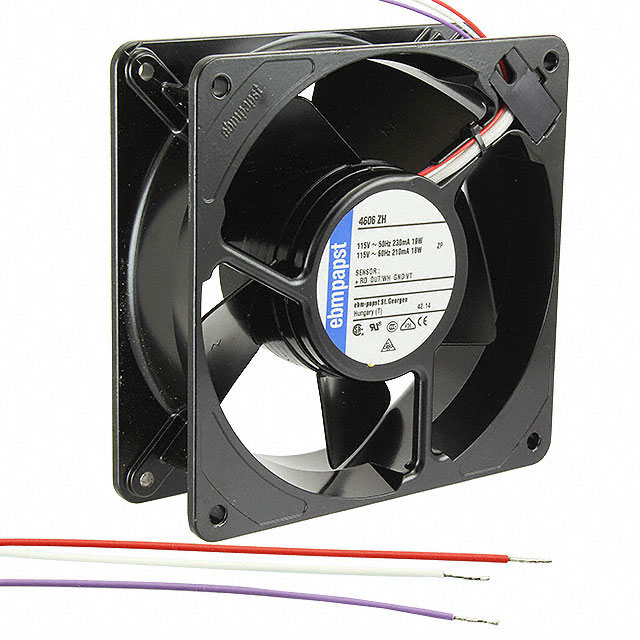

ebm-papst Inc. 4606ZH	40000 Hrs	Metal	Metal	2.97 m³/min	105.9 CFM	38 mm	Tubeaxial	18 W	3100 RPM		115 VAC	2 3 Terminals	544.3 g	1.2 lbs	Ball	45 dB(A)	-40 C	85 °C	Square	119 mm	119 mm

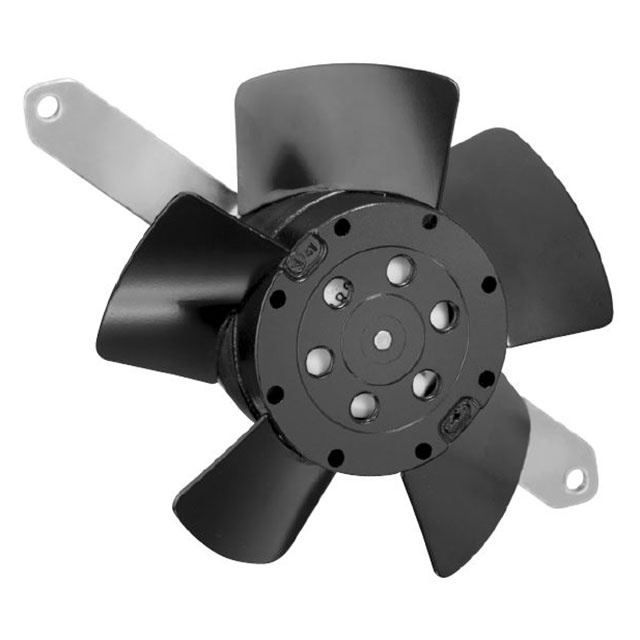

ebm-papst Inc. 4606TZ	40000 Hrs	Metal	Metal	2.31 m³/min	82.4 CFM		Tubeaxial	18 W	2950 RPM		115 VAC				Ball	45 dB(A)	-40 C	75 ░C	Round			CE CSA UL VDE	37 mm	108 mm	2 Wire Leads	-40 °C	75 °C	430.01 g	0.948 lb
ebm-papst Inc. 4606ZWU-879	37500 Hrs	Metal	Metal	2.97 m³/min	105.9 CFM	38 mm	Tubeaxial	17 W	3100 RPM	IP65 - Dust Tight Water Resistant	115 VAC		544.3 g	1.2 lbs	Ball	42 dB	-40 C	80 °C	Square	119 mm	119 mm	CCC CE CSA UL VDE			2 Wire Leads

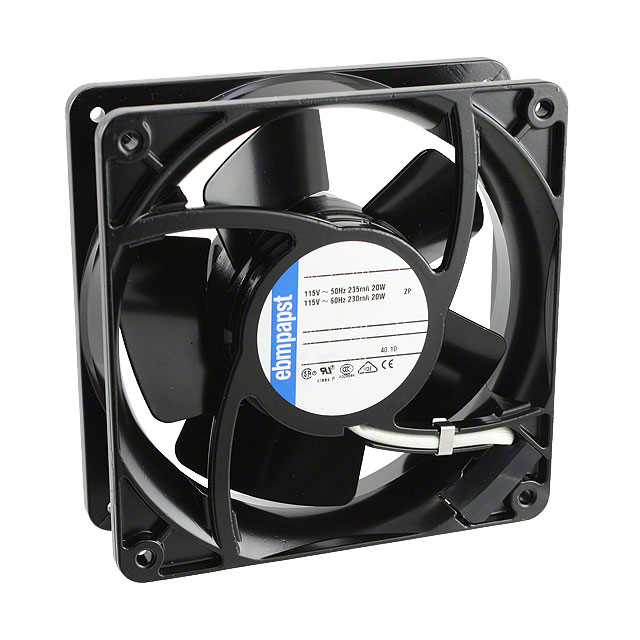

ebm-papst Inc. 4606X		Metal	Metal	2.97 m³/min	106 CFM	38 mm	Tubeaxial	18 W			115 VAC	2	544.3 g	1.2 lbs	Ball	51 dB(A)			Square	119 mm	119 mm	CSA UL VDE
