19370101 Series
Manufacturer: HARTING
Beta
⌘K
HAN M BASE SURFACE LC 2 LEVERS 1XM20 ROHS COMPLIANT: NA
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Ingress Protection | Housing Material | Connector Type | Housing Finish | Size | Lock Location | Features | Style | Housing Color | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

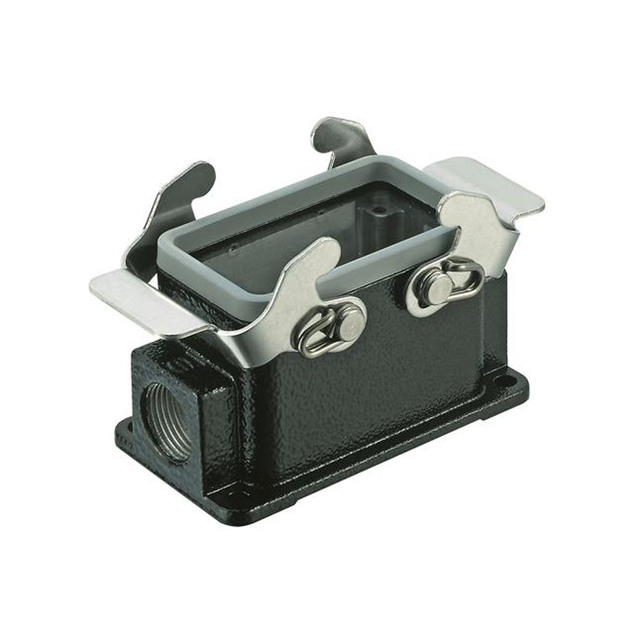

 HARTING | 53.8 mm | 3.701 in | 2.118 in | 52 mm | 2.047 in | 94 mm | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Base - Box Mount | Powder Coated | 10B | Locking Clip (2) on Base Bottom | Feed Through | Side Entry | Black | M20 | 125 °C | -40 C |

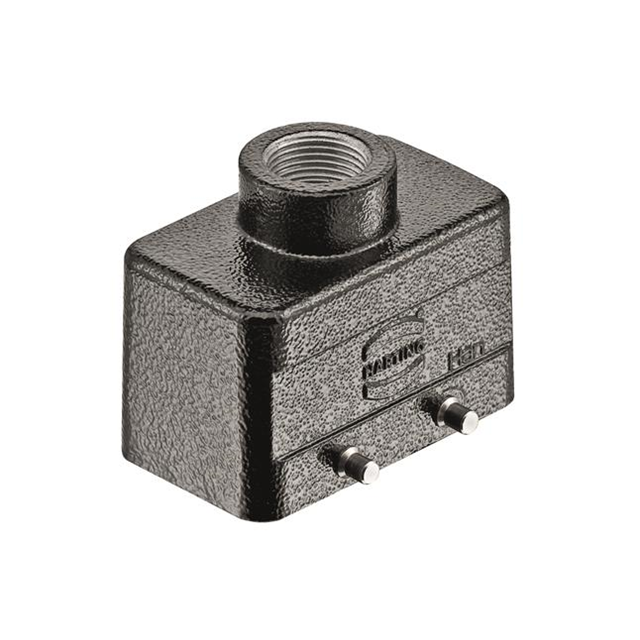

 HARTING | 45 mm | 2.858 in | 1.772 in | 43 mm | 1.693 " | 72.6 mm | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | Hood | Powder Coated | 10B | Locking Clip (2) on Base Bottom | Top Entry | Black | M20 | 125 °C | -40 C |
