2218F Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

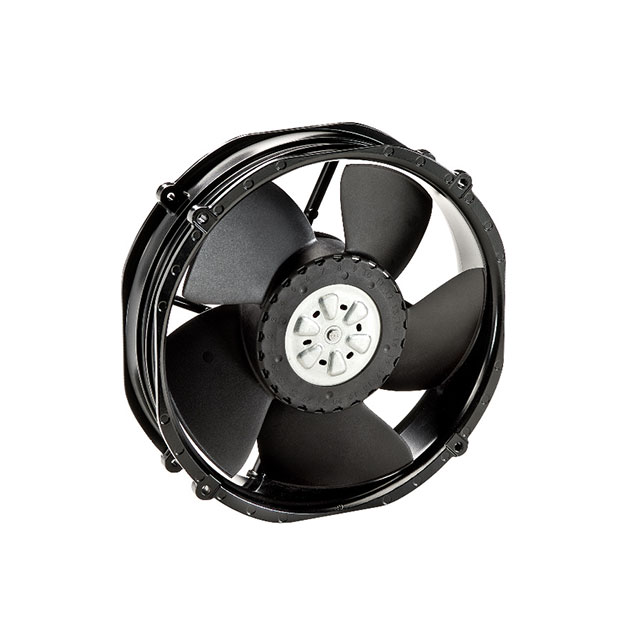

DC AXIAL FAN, 48 V, CIRCULAR, 220 MM, 51 MM, BALL BEARING, 553.3 CFM
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Material - Blade | RPM | Features | Fan Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Size / Dimension [diameter] | Size / Dimension | Termination | Weight [custom] | Weight [custom] | Bearing Type | Power (Watts) | Width [y] | Air Flow | Air Flow | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 72 VDC | 36 VDC | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | 5000 RPM | PWM Control Speed Sensor (Tach) | Tubeaxial | 70 °C | -25 °C | 48 VDC | 220 mm | Round | 4 Wire Leads | 2.3 lbs | 1 kg | Ball | 48 W | 50.8 mm | 553 CFM | 15.48 m³/min | UL |
