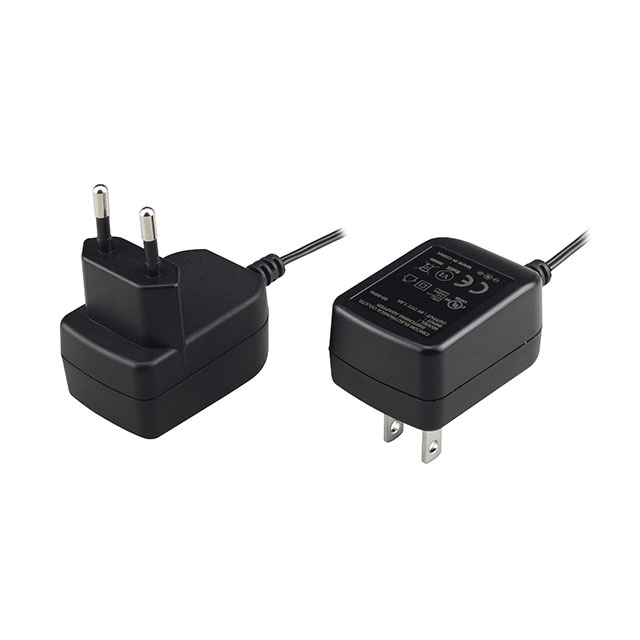

TRE06S Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC WALL MOUNT ADAPTER 15V 6W

Part	Weight	Weight	Applications	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Polarization	Current - Output (Max) [Max]	Output Connector	Output Connector [diameter]	Output Connector [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Approval Agency	Input Type	No Load Power Consumption	Voltage - Output	Input Connector	Cord Length	Cord Length	Efficiency	Form	Standard Number
Cincon Electronics Co. LTD TRE06S150-A-11A03 VI	0.121 lb	54.88 g	ITE (Commercial)	6 W	80 °C	-20 ░C	264 VAC	90 VAC	North America	Positive Center	400 mA	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	15 V	NEMA 1-15P	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount
Cincon Electronics Co. LTD TRE06S050-A-01A03 VI			ITE (Commercial)	6 W	80 °C	-20 ░C	264 VAC	90 VAC	North America	Positive Center	1.2 A	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	5 V	NEMA 1-15P	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1

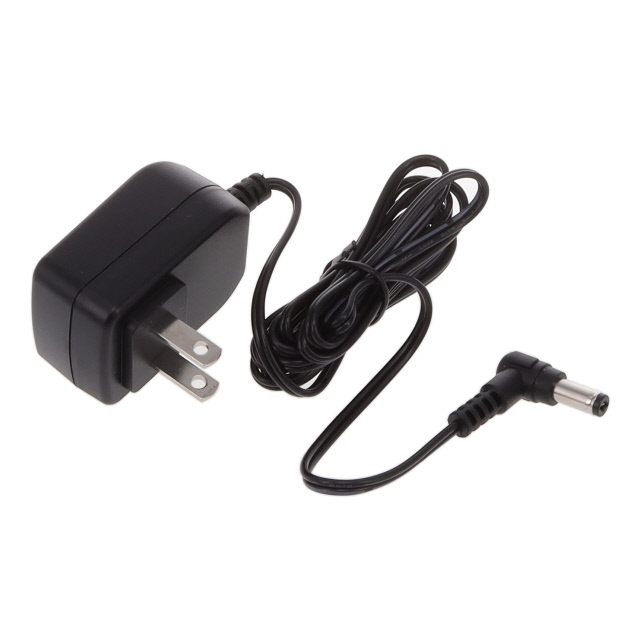

Cincon Electronics Co. LTD TRE06S120-A-01A03 VI			ITE (Commercial)	6 W	80 °C	-20 ░C	264 VAC	90 VAC	North America	Positive Center	500 mA	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	12 V	NEMA 1-15P	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1

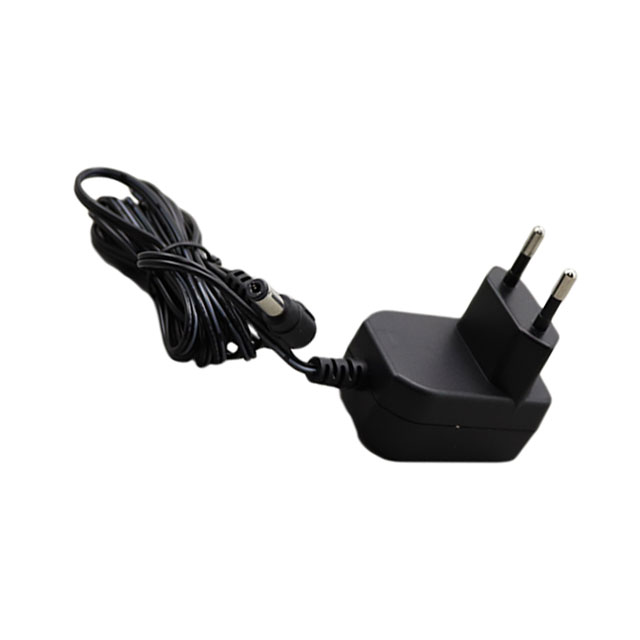

Cincon Electronics Co. LTD TRE06S120-E-01E03 VI			ITE (Commercial)	6 W	80 °C	-20 ░C	264 VAC	90 VAC	Europe	Positive Center	500 mA	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	12 V	KSC 8305	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1
Cincon Electronics Co. LTD TRE06S090-A-01A03 VI			ITE (Commercial)	5.9 W	80 °C	-20 ░C	264 VAC	90 VAC	North America	Positive Center	650 mA	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	9 V	NEMA 1-15P	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1
Cincon Electronics Co. LTD TRE06S050-E-01E03 VI			ITE (Commercial)	6 W	80 °C	-20 ░C	264 VAC	90 VAC	Europe	Positive Center	1.2 A	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	5 V	KSC 8305	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1

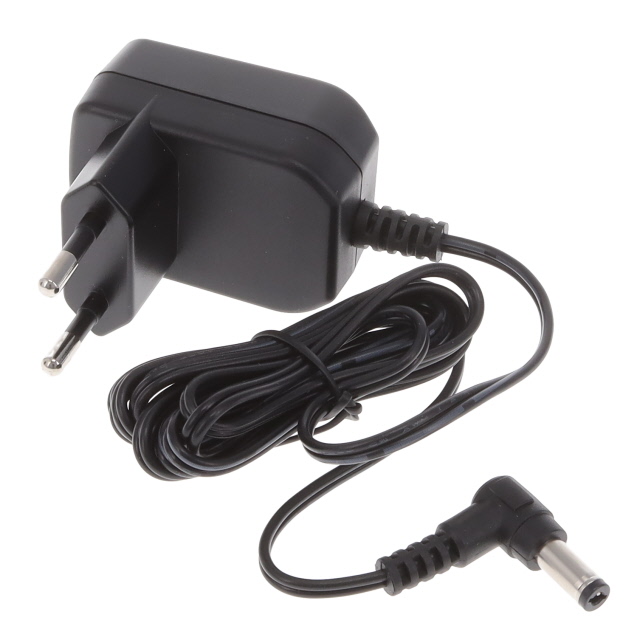

Cincon Electronics Co. LTD TRE06S090-E-01A03 VI			ITE (Commercial)	5.9 W	80 °C	-20 ░C	264 VAC	90 VAC	Europe	Positive Center	650 mA	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	9 V	KSC 8305	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1
Cincon Electronics Co. LTD TRE06S090-A-01E03 VI			ITE (Commercial)	5.9 W	80 °C	-20 ░C	264 VAC	90 VAC	North America	Positive Center	650 mA	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	9 V	NEMA 1-15P	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1

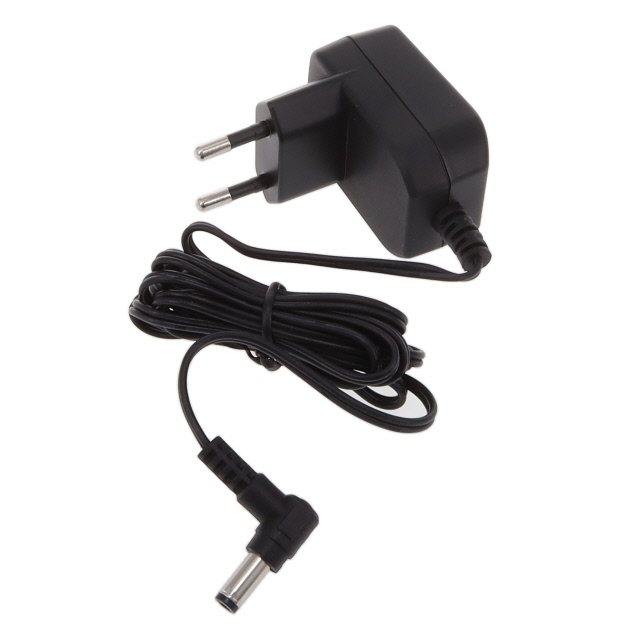

Cincon Electronics Co. LTD TRE06S050-E-01A03 VI			ITE (Commercial)	6 W	80 °C	-20 ░C	264 VAC	90 VAC	Europe	Positive Center	1.2 A	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	5 V	KSC 8305	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1

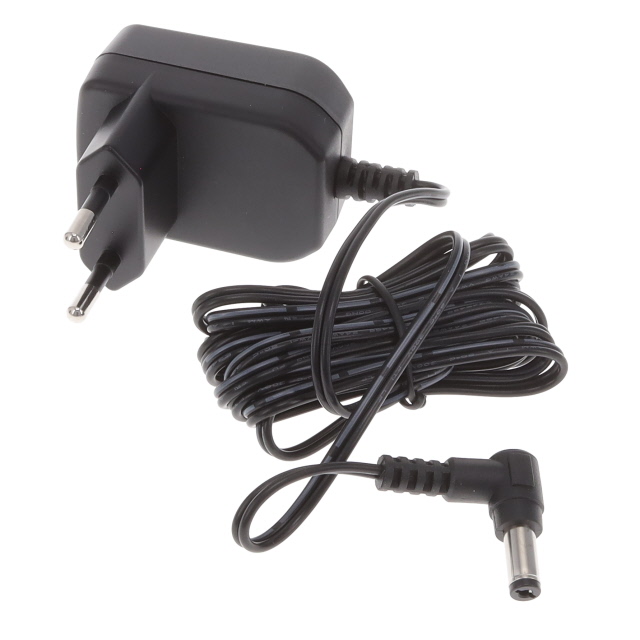

Cincon Electronics Co. LTD TRE06S120-E-01A03 VI			ITE (Commercial)	6 W	80 °C	-20 ░C	264 VAC	90 VAC	Europe	Positive Center	500 mA	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	2.05 in	52 mm	25.2 mm	0.99 "	1.42 in	36 mm	CE cULus FCC	Fixed Blade	75 mW	12 V	KSC 8305	70.9 "	1.8 m	CoC Tier 2 Level VI	Wall Mount	60950-1 62368-1
