172-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

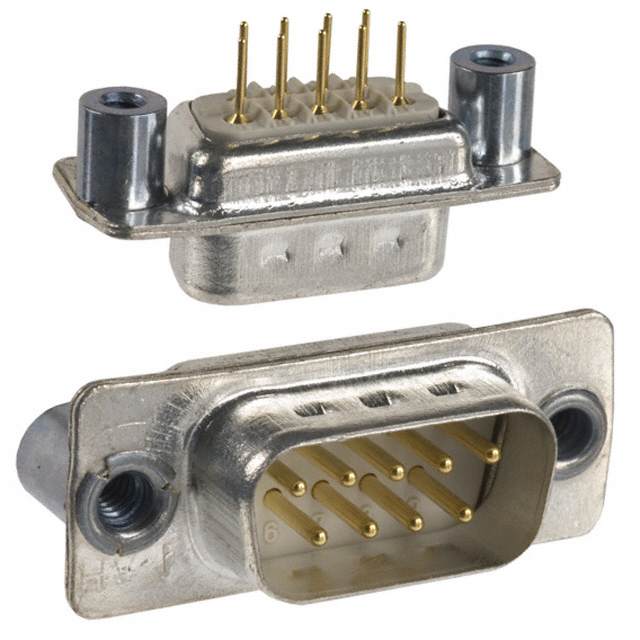

CONN D-SUB PLG 9POS PNL MNT SLDR
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Termination | Contact Type | Flange Feature | Contact Finish | Mounting Type | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Contact Finish Thickness | Number of Rows [custom] | Connector Style | Connector Type | Current Rating (Amps) | Number of Positions | Wire Gauge [Min] | Wire Gauge [Max] | Color | Contact Material | Features | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 125 °C | -50 °C | 1 | DE E | UL94 V-0 | Solder | Signal | Housing/Shell (Unthreaded) | Gold | Panel Mount Through Hole | Steel | Yellow Chromate Plated | Flash | 2 | D-Sub | Plug Male Pins | 5 A | 9 | ||||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | 1 | DE E | UL94 V-0 | Signal | Housing/Shell (Unthreaded) | Gold | Panel Mount | Flash | 2 | D-Sub | Plug Male Pins | 5 A | 9 | 19.5 AWG | 26 AWG | Beige | Brass | Grounding Indents | ||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) Polyester | 100 °C | -50 °C | 1 | DE E | UL94 V-0 | Solder | Signal | Board Side (4-40) | Gold | Panel Mount Through Hole | Flash | 2 | D-Sub | Plug Male Pins | 5 A | 9 | Beige | Brass | Grounding Indents | |||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | 1 | DE E | UL94 V-0 | Solder | Signal | Board Side (4-40) | Gold | Panel Mount Through Hole | Flash | 2 | D-Sub | Plug Male Pins | 5 A | 9 | Grounding Indents | |||||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) Polyester | 100 °C | -50 °C | 1 | DE E | UL94 V-0 | Wire Wrap | Signal | Board Side (4-40) | Gold | Panel Mount Through Hole | Flash | 2 | D-Sub | Receptacle Female Sockets | 5 A | 9 | Beige | Brass | ||||||
NorComp Inc. | Polybutylene Terephthalate (PBT) | 100 °C | -50 °C | 1 | DE E | UL94 V-0 | Solder | Signal | Housing/Shell (Unthreaded) | Gold | Panel Mount Through Hole | Flash | 2 | D-Sub | Plug Male Pins | 5 A | 9 | Grounding Indents | |||||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) Polyester | 100 °C | -50 °C | 1 | DE E | UL94 V-0 | Wire Wrap | Signal | Board Side (4-40) | Gold | Panel Mount Through Hole | Flash | 2 | D-Sub | Plug Male Pins | 5 A | 9 | Beige | Brass | Grounding Indents | |||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 125 °C | -50 °C | 1 | DE E | UL94 V-0 | Solder | Signal | 4-40 | Gold | Panel Mount Through Hole | Steel | Yellow Chromate Plated | Flash | 2 | D-Sub | Plug Male Pins | 5 A | 9 | ||||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 125 °C | -50 °C | 1 | DE E | UL94 V-0 | Solder | Signal | Board Side (4-40) | Gold | Panel Mount Through Hole | Flash | 2 | D-Sub | Plug Male Pins | 5 A | 9 | Grounding Indents | Nickel Plated Steel | ||||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | 125 °C | -50 °C | 1 | DE E | UL94 V-0 | Solder | Signal | Board Side (4-40) | Gold | Panel Mount Through Hole | Flash | 2 | D-Sub | Receptacle Female Sockets | 5 A | 9 | Black | Brass | Nickel Plated Steel |
