L77SDCH37 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 37POS VERT SLDR

Part	Color	Contact Form	Contact Material	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Flange Feature	Contact Finish	Mounting Type	Current Rating (Amps)	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Termination	Material Flammability Rating	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Features	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDCH37SOL2GC309	Black	Stamped	Phosphor Bronze	Thermoplastic Glass Filled	250 V	-55 C	125 °C	2	Board Side (4-40)	Gold	Through Hole	3 A	Signal	30 Áin	0.76 Ám	Receptacle Female Sockets	37	Solder	UL94 V-0	D-Sub	4	DC C
Amphenol ICC (Commercial Products) L77SDCH37SOL2RM5C309	Black	Stamped	Phosphor Bronze	Thermoplastic Glass Filled	250 V	-55 C	125 °C	2	Board Side (4-40)	Gold	Through Hole	3 A	Signal	30 Áin	0.76 Ám	Receptacle Female Sockets	37	Solder	UL94 V-0	D-Sub	4	DC C	Board Lock
Amphenol ICC (Commercial Products) L77SDCH37SOL2G	Black	Stamped	Phosphor Bronze	Thermoplastic Glass Filled	250 V	-55 C	125 °C	2	Board Side (4-40)	Gold	Through Hole	3 A	Signal			Receptacle Female Sockets	37	Solder	UL94 V-0	D-Sub	4	DC C		Flash

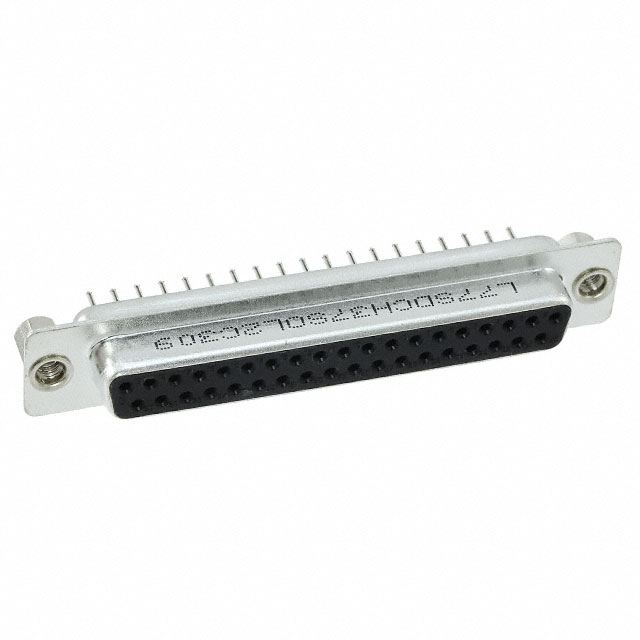

Amphenol ICC (Commercial Products) L77SDCH37SOL2C309	Black	Stamped	Phosphor Bronze	Thermoplastic Glass Filled	250 V	-55 C	125 °C	2	Board Side (4-40)	Gold	Through Hole	3 A	Signal	30 Áin	0.76 Ám	Receptacle Female Sockets	37	Solder	UL94 V-0	D-Sub	4	DC C

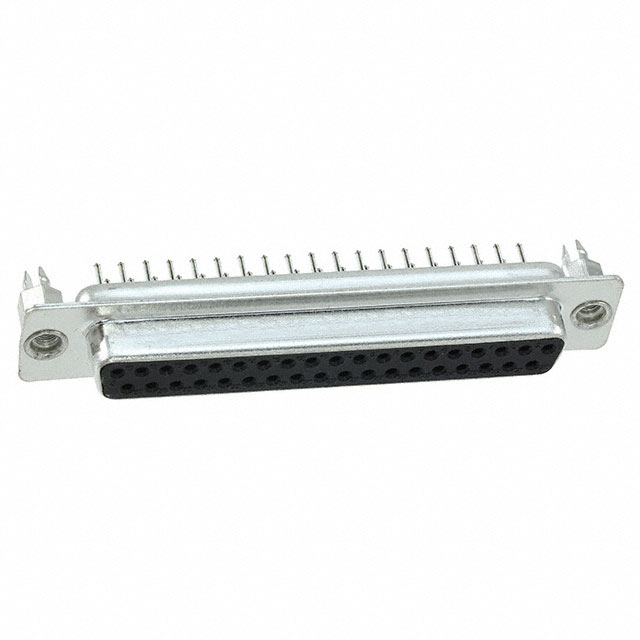

Amphenol ICC (Commercial Products) L77SDCH37SOL2RM5	Black	Stamped	Phosphor Bronze	Thermoplastic Glass Filled	250 V	-55 C	125 °C	2	Board Side (4-40)	Gold	Through Hole	3 A	Signal			Receptacle Female Sockets	37	Solder	UL94 V-0	D-Sub	4	DC C	Board Lock	Flash

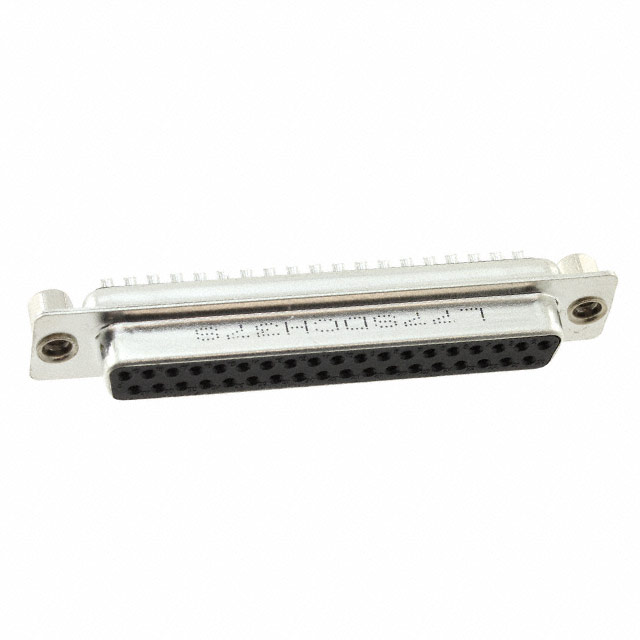

Amphenol ICC (Commercial Products) L77SDCH37S	Black	Stamped	Brass	Thermoplastic Glass Filled	250 V	-55 C	105 ░C	2	Cable Side (4-40)	Gold	Free Hanging (In-Line)	3 A	Signal			Receptacle Female Sockets	37		UL94 V-0	D-Sub	4	DC C	Board Lock	Flash	20 AWG

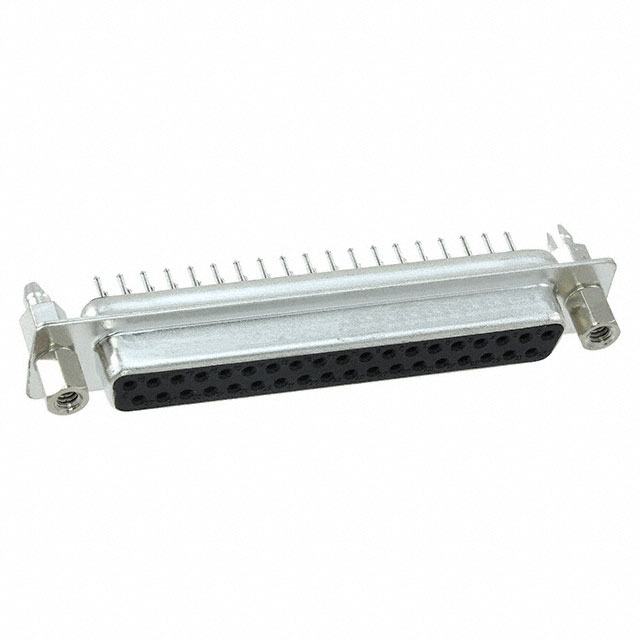

Amphenol ICC (Commercial Products) L77SDCH37SOL2RM8	Black	Stamped	Phosphor Bronze	Thermoplastic Glass Filled	250 V	-55 C	125 °C	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	Through Hole	3 A	Signal			Receptacle Female Sockets	37	Solder	UL94 V-0	D-Sub	4	DC C	Board Lock	Flash
Amphenol ICC (Commercial Products) L77SDCH37SOL2RM8GC309	Black	Stamped	Phosphor Bronze	Thermoplastic Glass Filled	250 V	-55 C	125 °C	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	Through Hole	3 A	Signal	30 Áin	0.76 Ám	Receptacle Female Sockets	37	Solder	UL94 V-0	D-Sub	4	DC C	Board Lock
Amphenol ICC (Commercial Products) L77SDCH37SOL2RM8G	Black	Stamped	Phosphor Bronze	Thermoplastic Glass Filled	250 V	-55 C	125 °C	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	Through Hole	3 A	Signal			Receptacle Female Sockets	37	Solder	UL94 V-0	D-Sub	4	DC C	Board Lock	Flash

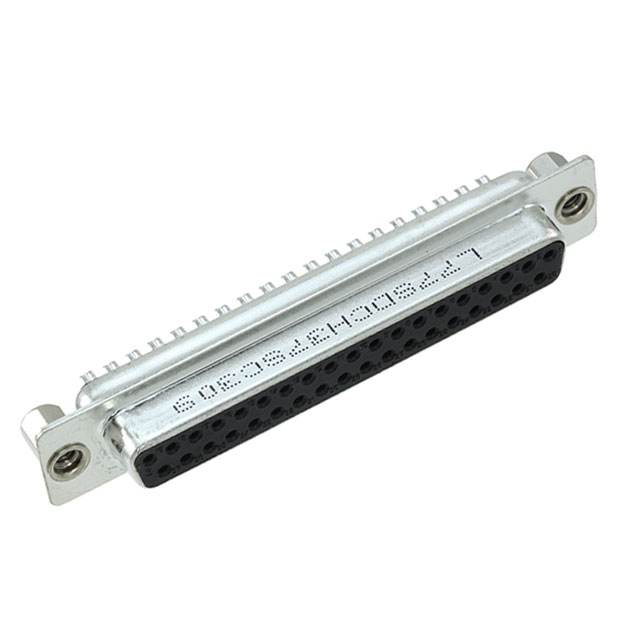

Amphenol ICC (Commercial Products) L77SDCH37SC309	Black	Stamped	Brass	Thermoplastic Glass Filled	250 V	-55 C	105 ░C	2	Cable Side (4-40)	Gold	Free Hanging (In-Line)	3 A	Signal	30 Áin	0.76 Ám	Receptacle Female Sockets	37		UL94 V-0	D-Sub	4	DC C			20 AWG
