78ST2 Series

Catalog

DC DC CONVERTER 12V 2A

Part	Applications	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Features	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments 78ST212VC	ITE (Commercial)	2 A	3-SIP Module	14.5 V	12 V	Non-Isolated PoL Module	OTP SCP	28 V	0.31 "	7.9 mm	22.9 mm	0.94 in	0.9 "	23.9 mm	Through Hole	1	85 °C	-40 °C
Texas Instruments 78ST205SC	ITE (Commercial)	2 A	3-SMD Module	8 V	5 V	Non-Isolated PoL Module	OTP SCP	20 V	0.9 "	22.9 mm	23.9 mm	0.34 in	0.94 in	8.6 mm	Surface Mount	1	85 °C	-40 °C

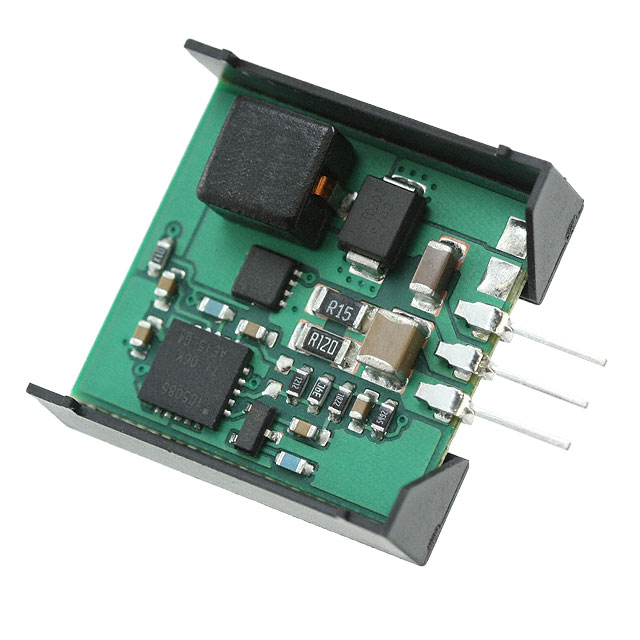

Texas Instruments 78ST205VC	ITE (Commercial)	2 A	3-SIP Module	8 V	5 V	Non-Isolated PoL Module	OTP SCP	20 V	0.31 "	7.9 mm	22.9 mm	0.94 in	0.9 "	23.9 mm	Through Hole	1	85 °C	-40 °C
Texas Instruments 78ST205HC	ITE (Commercial)	2 A	3-SIP Module	8 V	5 V	Non-Isolated PoL Module	OTP SCP	20 V	1.01 in	25.7 mm	23.6 mm	0.38 in	0.93 in	9.7 mm	Through Hole Right Angle	1	85 °C	-40 °C
