TVFKC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 7 POS 5MM PITCH PLUG 24-16AWG SPRING

Part	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Wire Strip Length	Number of Levels [custom]	Number of Levels [custom]	Voltage - IEC	Pitch	Pitch	Current - IEC	Current - UL	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Type	Termination Style	Color	Contact Mating Finish	Voltage - UL	Number of Positions	Plug Wire Entry	Positions Per Level [custom]	Positions Per Level [custom]

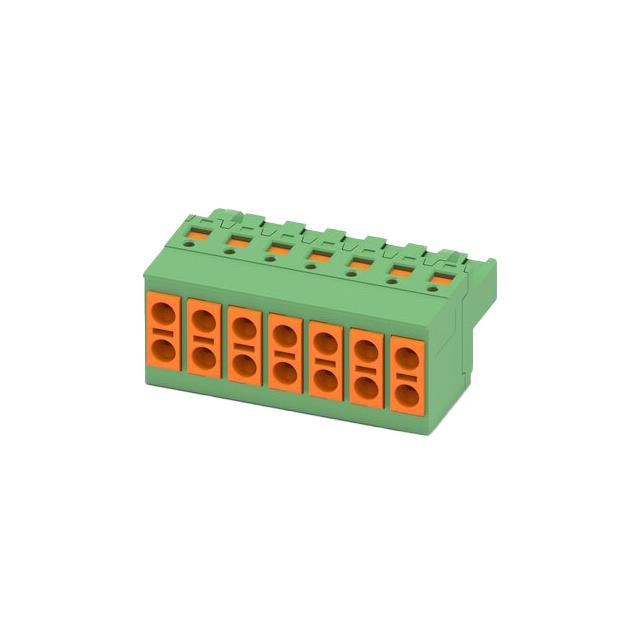

Phoenix Contact 1713884	UL94 V-0	0.591 in	15 mm	1.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	8 mm	1	2	630 V	0.197 in	5 mm	10 A	8 A	Free Hanging (In-Line)	16 AWG	24 AWG	1.5 mm²	0.2 mm²	Plug Female Sockets	Screwless - Spring Cage Tension Clamp	Green	Tin	300 V	7	180 °	7	14

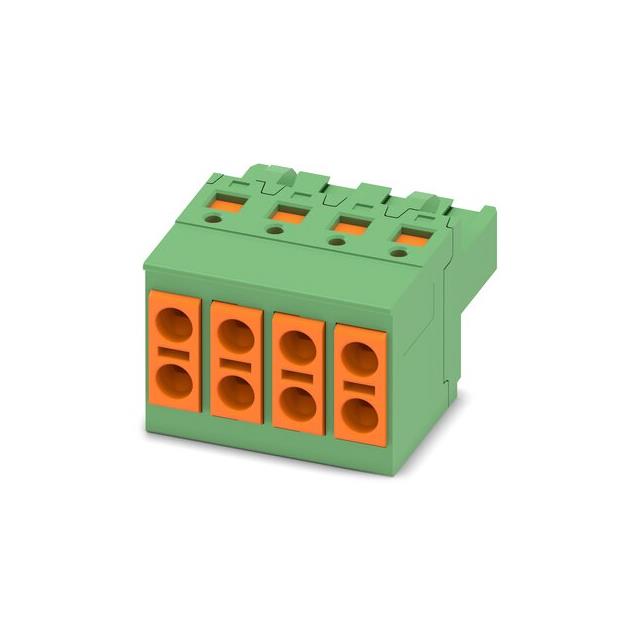

Phoenix Contact 1713855	UL94 V-0	0.591 in	15 mm			Polyamide (PA) Nylon	8 mm	1	2	630 V	0.197 in	5 mm	10 A	8 A	Free Hanging (In-Line)	16 AWG	24 AWG	1.5 mm²	0.2 mm²	Plug Female Sockets	Screwless - Spring Cage Tension Clamp	Green	Tin	300 V	4	180 °	4	8
Phoenix Contact 1713910	UL94 V-0	0.591 in	15 mm	1.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	8 mm	1	2	630 V	0.197 in	5 mm	10 A	8 A	Free Hanging (In-Line)	16 AWG	24 AWG	1.5 mm²	0.2 mm²	Plug Female Sockets	Screwless - Spring Cage Tension Clamp	Green	Tin	300 V	10	180 °	10	20
Phoenix Contact 1713842	UL94 V-0	0.591 in	15 mm			Polyamide (PA) Nylon	8 mm	1	2	630 V	0.197 in	5 mm	10 A	8 A	Free Hanging (In-Line)	16 AWG	24 AWG	1.5 mm²	0.2 mm²	Plug Female Sockets	Screwless - Spring Cage Tension Clamp	Green	Tin	300 V		180 °	3	6
