1971819 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN HEADER VERT 10POS 2.5MM
| Part | Number of Rows | Number of Positions Loaded | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Insulation Material | Contact Length - Post | Contact Length - Post | Contact Type | Number of Positions | Style | Applications | Material Flammability Rating | Connector Type | Contact Shape | Contact Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Shrouding | Features | Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 1 | All | Natural | 2.5 mm | 0.098 in | Tin | Nylon Polyamide (PA) | 0.114 in | 2.9 mm | Tab | 10 | Board to Cable/Wire | General Purpose | UL94 V-0 | Header | Rectangular | Copper Alloy | Through Hole | -40 °C | 120 °C | 13.11 mm | 0.516 in | Shrouded - 4 Wall | Board Guide Glow Wire Compliant | Solder | Locking Ramp |
TE Connectivity Raychem Cable Protection | 1 | All | Natural | 2.5 mm | 0.098 in | Tin | Nylon Polyamide (PA) | 0.114 in | 2.9 mm | Tab | 8 | Board to Cable/Wire | General Purpose | UL94 V-0 | Header | Rectangular | Copper Alloy | Through Hole | -40 °C | 120 °C | 13.11 mm | 0.516 in | Shrouded - 4 Wall | Board Guide Glow Wire Compliant | Solder | Locking Ramp |

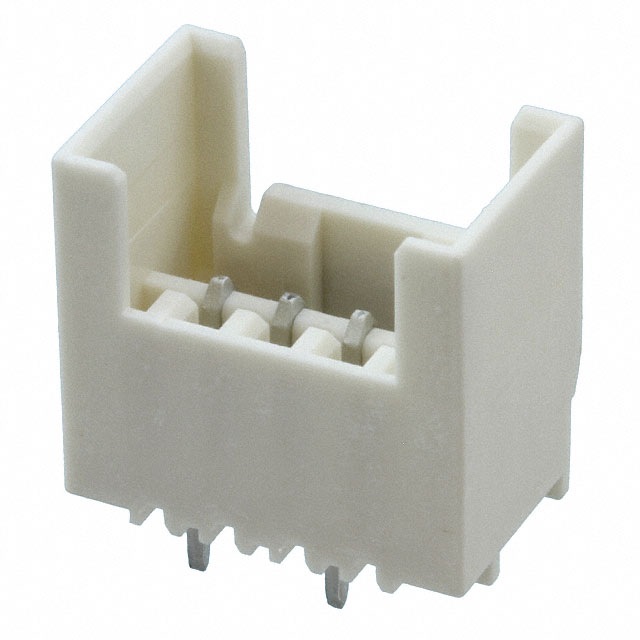

 TE Connectivity Raychem Cable Protection | 1 | All | Natural | 2.5 mm | 0.098 in | Tin | Nylon Polyamide (PA) | 0.114 in | 2.9 mm | Tab | 4 | Board to Cable/Wire | General Purpose | UL94 V-0 | Header | Rectangular | Copper Alloy | Through Hole | -40 °C | 120 °C | 13.11 mm | 0.516 in | Shrouded - 4 Wall | Board Guide Glow Wire Compliant | Solder | Locking Ramp |
