2320808 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

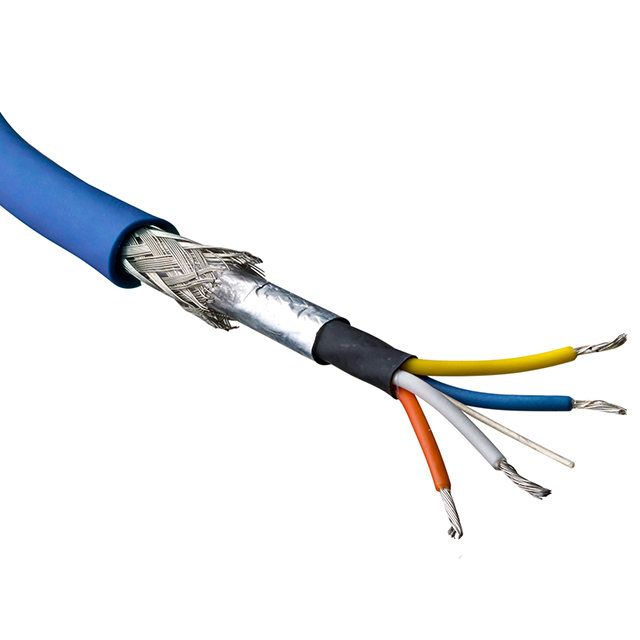

CABLE CAT5E 4COND 22AWG BLUE 25M
| Part | Shield Material | Length [x] | Length [x] | Shield Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [diameter] | Voltage | Jacket Color | Length | Length | Wire Gauge | Conductor Insulation | Cable Type | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Aluminum Copper Tinned | 3.28 ft 82.02 ft | 1 m 25 m | Braid Foil | Copper Tinned | 0.0354 in | 0.9 mm | 19 Strands | 0.0063 in | 300 V | Blue | 164 ft 328.1 ft | 50 m 100 m | 22 AWG | Thermoplastic Polymer | Multi-Pair Cat5e | 4 | 90 °C | -40 °C | 85 % 100 % | Communication | 0.256 in | 6.5 mm |
