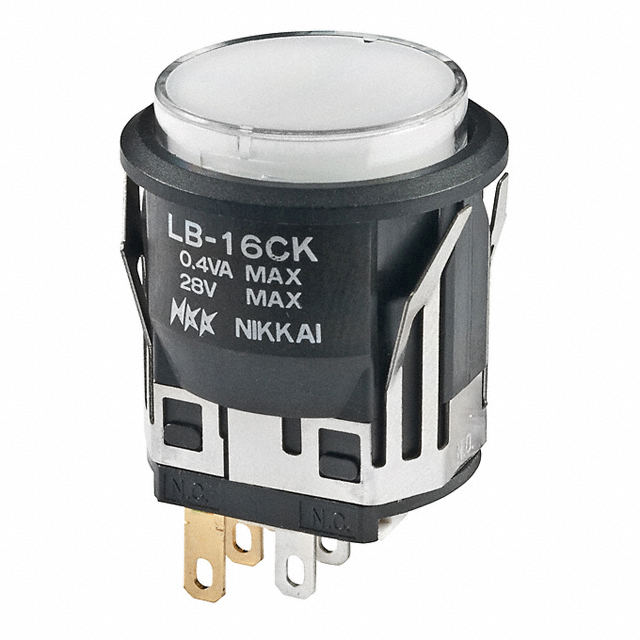

LB16CKG01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Electrical Life	Mechanical Life	Actuator Marking	Illumination Type, Color	Actuator Type	Circuit	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Voltage Rating - DC	Termination Style	Color - Actuator/Cap	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Type
NKK Switches LB16CKG01-5F05-JB	100000 Cycles	200000 Cycles	No Marking	Green LED	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	5 VDC	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
NKK Switches LB16CKG01-5F05-JF	100000 Cycles	200000 Cycles	No Marking	Green LED	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	5 VDC	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
NKK Switches LB16CKG01-5D12-JD	100000 Cycles	200000 Cycles	No Marking	Amber LED	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	12 VDC	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
NKK Switches LB16CKG01-5C12-JC	100000 Cycles	200000 Cycles	No Marking	LED Red	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	12 VDC	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
NKK Switches LB16CKG01-5D24-JB	100000 Cycles	200000 Cycles	No Marking	Amber LED	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	24 V	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
NKK Switches LB16CKG01-5D05-JD	100000 Cycles	200000 Cycles	No Marking	Amber LED	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	5 VDC	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
NKK Switches LB16CKG01-5F12-JF	100000 Cycles	200000 Cycles	No Marking	Green LED	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	12 VDC	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
NKK Switches LB16CKG01-C	100000 Cycles	200000 Cycles	No Marking		Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Red		22 mm	70 °C	-25 °C	On-On	Standard
NKK Switches LB16CKG01-6F-JB	100000 Cycles	200000 Cycles	No Marking	Green LED	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	3.3 VDC	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
NKK Switches LB16CKG01-6B-JB	100000 Cycles	200000 Cycles	No Marking	LED White	Button Round	SPDT	0.4 VA	28 V	Panel Mount Snap-In	28 V	Solder Quick Connect - 0.110" (2.8mm)	Clear	3.3 VDC	22 mm	50 °C	-25 °C	On-On	Illuminated Standard
