ES10S001 Series
Manufacturer: JAE Electronics
Beta
⌘K

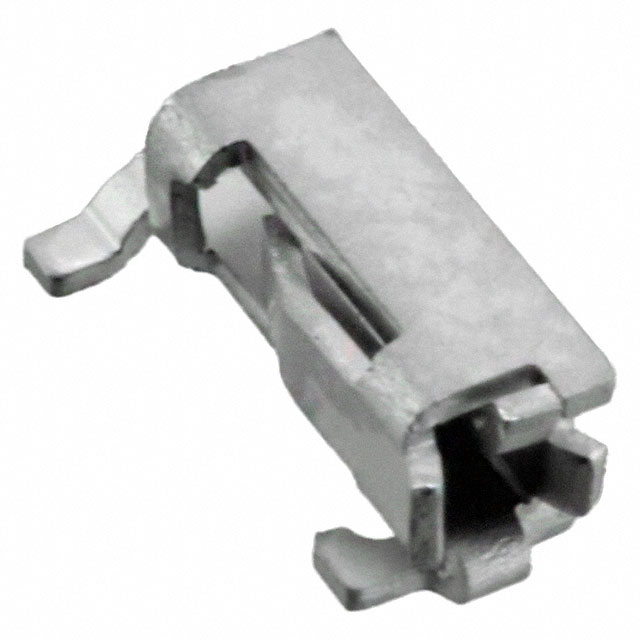

CONN SSL SCKT CONT 24-26AWG SLDR
| Part | Mating Cycles | Current Rating (Amps) | Contact Material | Mounting Type | Contact Finish | Style | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Wire Gauge [Min] | Wire Gauge [Max] | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 5 | 2 A | Copper Alloy | Right Angle Surface Mount | Tin | Board to Cable/Wire | -40 C | 105 ░C | 1 | 24 AWG | 26 AWG | Contact Socket | Solder |
