4650 Series

Catalog

FAN AXIAL 119X38MM 230VAC TERM

Part	Air Flow	Air Flow	Material - Blade	Material - Frame	Weight [custom]	Weight [custom]	Bearing Type	Width [y]	Noise	Voltage - Rated	Power (Watts)	Termination	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Fan Type	Approval Agency	Lifetime @ Temp.	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Size / Dimension [diameter]	Width [x]	Termination	Weight [custom]	Weight [custom]	Operating Temperature

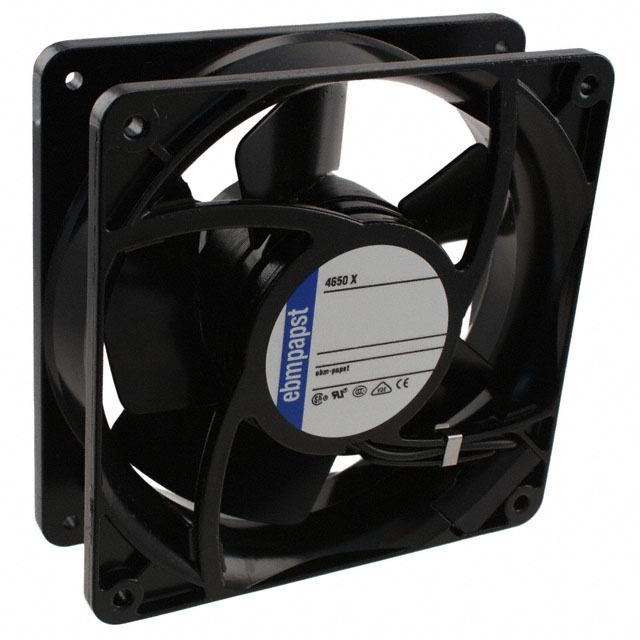

ebm-papst Inc. 4650X	2.97 m³/min	106 CFM	Metal	Metal	544.3 g	1.2 lbs	Sintec	38 mm	50 dB(A)	230 VAC	18 W	2	Square	119 mm	119 mm	Tubeaxial	CCC CE CSA UL VDE
ebm-papst Inc. 4650Z-854	2.63 m³/min	94.1 CFM	Steel	Aluminum			Sintec	38 mm	40 dB(A)	230 VAC	19 W	2	Square	119 mm	119 mm	Tubeaxial	CE CSA UL VDE	37500 Hrs	IP54/IP65	-10 °C	50 °C	2650 RPM
ebm-papst Inc. 4650TA	2.27 m³/min	81.2 CFM	Metal	Metal			Sintec		41 dB	230 VAC	19 W		Round			Tubeaxial	CE CSA UL VDE	37500 Hrs		-10 °C	45 °C	2550 RPM	113 mm	37 mm	2 Wire Leads	430.01 g	0.948 lb
ebm-papst Inc. 4650Z	2.63 m³/min	94.1 CFM	Metal	Metal	544.3 g	1.2 lbs	Sintec	38 mm	40 dB(A)	230 VAC	19 W	2	Square	119 mm	119 mm	Tubeaxial	CE CSA UL VDE	37500 Hrs		-10 °C	50 °C	2650 RPM
ebm-papst Inc. 4650Z-876	2.63 m³/min	94.1 CFM	Steel	Aluminum			Sintec	38 mm	40 dB(A)	230 VAC	19 W	2	Square	119 mm	119 mm	Tubeaxial	CE CSA UL VDE	37500 Hrs	IP54/IP65	-10 °C	50 °C	2650 RPM
ebm-papst Inc. 4650N			Metal	Metal	544.3 g	1.2 lbs	Sintec	38 mm	46 dB(A)	230 VAC	19 W	2	Square	119 mm	119 mm	Tubeaxial	CE CSA UL VDE	37500 Hrs	IP20	-10 °C	55 °C	2650 RPM						-10 °C 55 °C
ebm-papst Inc. 4650ZW	2.64 mł/min	94.2 CFM	Metal	Metal	544.3 g	1.2 lbs	Sintec	38 mm	40 dB(A)	230 VAC	19 W		Square	119 mm	119 mm	Tubeaxial		37500 Hrs		-10 °C	50 °C	2650 RPM			2 Wire Leads
