D25S13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

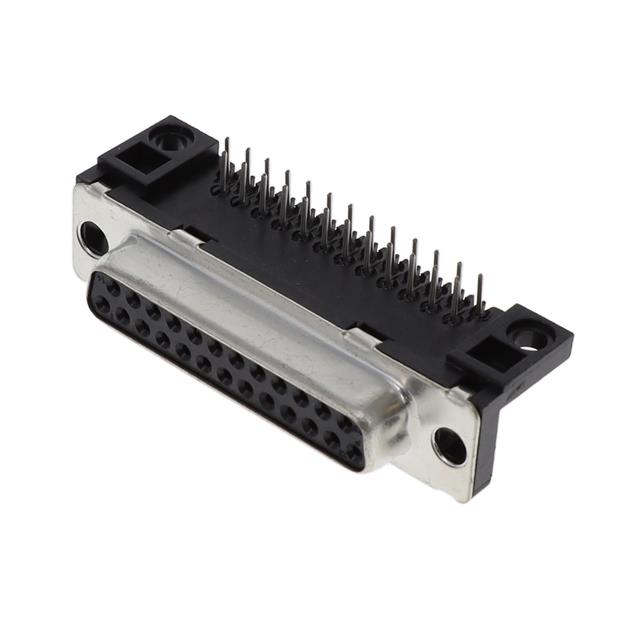

CONN D-SUB RCP 25P R/A SLD PASTE
| Part | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Dielectric Material | Operating Temperature | Connector Style | Contact Type | Material Flammability Rating | Number of Rows | Contact Material | Flange Feature | Features | Connector Type | Color | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Current Rating (Amps) | Backset Spacing | Backset Spacing | Voltage Rating | Contact Finish | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | B DB | 3 | Glass Filled Nylon Polyamide (PA) | -55 °C | D-Sub | Signal | UL94 V-0 | 2 | Phosphor Bronze | Housing/Shell (M3) | Board Guide Mounting Brackets | Receptacle Female Sockets | Black | Nickel Plated Steel | 0.76 Ám | 30 Áin | Solder Paste | 5 A | 0.409 in | 10.4 mm | 300 VDC | Gold | Through Hole Right Angle | |||
Amphenol ICC (FCI) | B DB | 3 | Thermoplastic | D-Sub | Signal | UL94 V-0 | 2 | Phosphor Bronze | Housing/Shell (4-40) | Receptacle Female Sockets | Black | Solder | 5 A | 0.409 in | 10.39 mm | 300 VDC | Gold | Through Hole Right Angle | -55 °C | 125 °C | Flash | |||||
Amphenol ICC (FCI) | B DB | 3 | Polyester | D-Sub | Signal | UL94 V-0 | 2 | Brass | Housing/Shell (4-40) | Board Lock Mounting Brackets | Receptacle Female Sockets | Black | Steel Tin-Nickel Plated | 0.76 Ám | 30 Áin | Solder | 5 A | 0.409 in | 10.4 mm | 300 VDC | Gold or Gold GXT™ | Through Hole Right Angle | -55 °C | 125 °C | ||
 Amphenol ICC (FCI) | B DB | 3 | Polyester | D-Sub | Signal | UL94 V-0 | 2 | Brass | Housing/Shell (M3) | Board Lock Mounting Brackets | Receptacle Female Sockets | Black | Steel Tin-Nickel Plated | 0.76 Ám | 30 Áin | Solder | 5 A | 0.409 in | 10.4 mm | 300 VDC | Gold or Gold GXT™ | Through Hole Right Angle | -55 °C | 125 °C | ||
Amphenol ICC (FCI) | B DB | 3 | Thermoplastic | D-Sub | Signal | UL94 V-0 | 2 | Phosphor Bronze | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | Solder | 5 A | 0.409 in | 10.39 mm | 300 VDC | Gold | Through Hole Right Angle | -55 °C | 125 °C | ||||
 Amphenol ICC (FCI) | B DB | 3 | Polybutylene Terephthalate (PBT) | D-Sub | Signal | UL94 V-0 | 2 | Phosphor Bronze | Female Screwlock (4-40) Mating Side | Board Lock Mounting Brackets | Receptacle Female Sockets | Black | Steel Tin-Nickel Plated | Solder | 5 A | 0.409 in | 10.4 mm | 300 VDC | Gold | Through Hole Right Angle | -55 °C | 125 °C | Flash | |||
Amphenol ICC (FCI) | B DB | 3 | Thermoplastic | D-Sub | Signal | UL94 V-0 | 2 | Phosphor Bronze | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Steel Tin-Nickel Plated | 0.76 Ám | 30 Áin | Solder | 5 A | 0.409 in | 10.4 mm | 300 VDC | Gold or Gold GXT™ | Through Hole Right Angle | -55 °C | 125 °C | |||
Amphenol ICC (FCI) | B DB | 3 | Polybutylene Terephthalate (PBT) | D-Sub | Signal | UL94 V-0 | 2 | Phosphor Bronze | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Solder | 5 A | 0.409 in | 10.39 mm | 300 VDC | Gold | Through Hole Right Angle | -55 °C | 125 °C | Flash | |||||
 Amphenol ICC (FCI) | B DB | 3 | Polybutylene Terephthalate (PBT) | D-Sub | Signal | UL94 V-0 | 2 | Phosphor Bronze | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Steel Tin-Nickel Plated | Solder | 5 A | 0.409 in | 10.4 mm | 300 VDC | Gold | Through Hole Right Angle | -55 °C | 125 °C | Flash | ||||
Amphenol ICC (FCI) | B DB | 3 | Polybutylene Terephthalate (PBT) | D-Sub | Signal | UL94 V-0 | 2 | Phosphor Bronze | Housing/Shell (Unthreaded) | Mounting Brackets | Receptacle Female Sockets | Black | 0.76 Ám | 30 Áin | Solder | 5 A | 0.409 in | 10.39 mm | 300 VDC | Gold or Gold GXT™ | Through Hole Right Angle | -55 °C | 125 °C |
