854-10 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER R/A 123P 1.27MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Connector Type	Shrouding	Contact Finish - Post	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Voltage Rating	Number of Rows [custom]	Number of Positions [custom]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Preci-Dip 854-10-123-20-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in	0.174 in	4.42 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	123	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Right Angle Through Hole	0.126 "	3.2 mm	Circular	150 VDC	3
Preci-Dip 854-10-126-20-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in	0.174 in	4.42 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	126	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Right Angle Through Hole	0.126 "	3.2 mm	Circular	150 VDC	3
Preci-Dip 854-10-084-20-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in	0.174 in	4.42 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold		UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Right Angle Through Hole	0.126 "	3.2 mm	Circular	150 VDC	3	84
Preci-Dip 854-10-018-10-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in			All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	18	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Through Hole			Circular	150 VDC	3		0.118 in	3 mm	8.1 mm	0.319 in
Preci-Dip 854-10-066-20-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in	0.174 in	4.42 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	66	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Right Angle Through Hole	0.126 "	3.2 mm	Circular	150 VDC	3
Preci-Dip 854-10-072-20-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in	0.174 in	4.42 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	72	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Right Angle Through Hole	0.126 "	3.2 mm	Circular	150 VDC	3

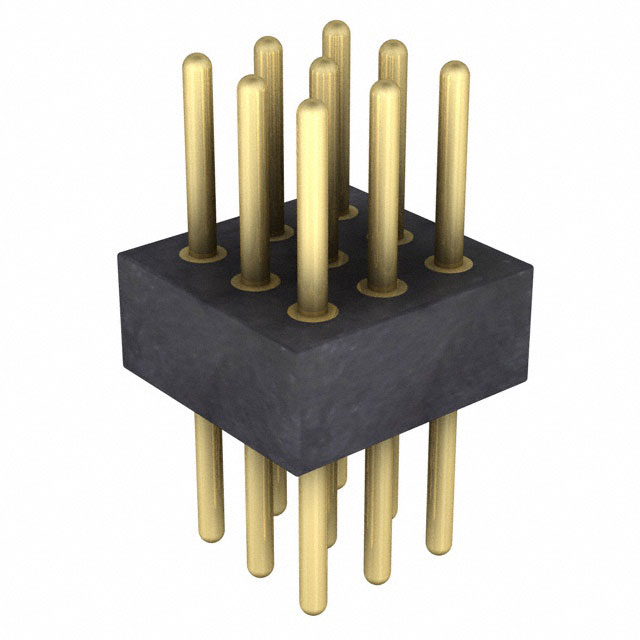

Preci-Dip 854-10-009-10-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in			All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	9	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Through Hole			Circular	150 VDC	3		0.118 in	3 mm	8.1 mm	0.319 in
Preci-Dip 854-10-147-20-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in	0.174 in	4.42 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	147	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Right Angle Through Hole	0.126 "	3.2 mm	Circular	150 VDC	3

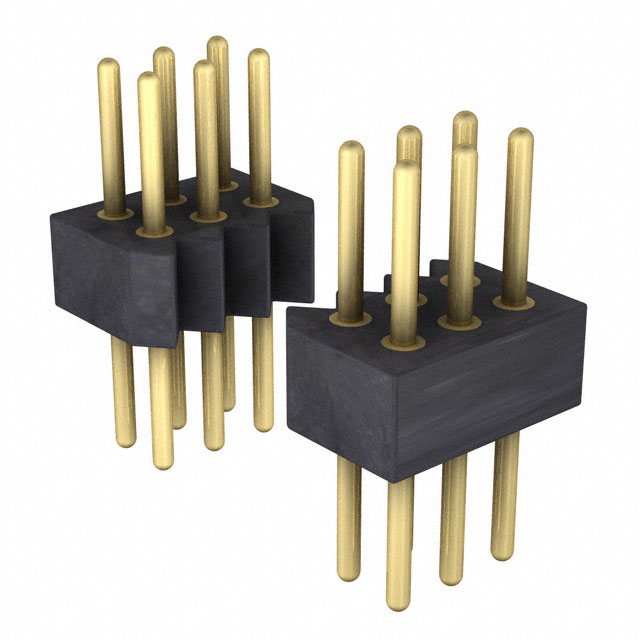

Preci-Dip 854-10-132-10-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in			All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	132	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Through Hole			Circular	150 VDC	3		0.118 in	3 mm	8.1 mm	0.319 in
Preci-Dip 854-10-057-20-001101	10 Áin	0.25 çm	Brass	Solder	3 mm	0.118 in	0.174 in	4.42 mm	All	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.25 µm	10 µin	1.27 mm	0.05 in	Gold	57	UL94 V-0	Black	0.05 in	1.27 mm	Push-Pull	Header	Unshrouded	Gold	Male Pin	-55 C	125 °C	Right Angle Through Hole	0.126 "	3.2 mm	Circular	150 VDC	3
