ISL84684 Series

Catalog

IC SWITCH SPDTX2 500MOHM 10TDFN

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Switch Circuit	Package / Case	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	On-State Resistance (Max) [Max]	Crosstalk	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Charge Injection	Mounting Type	Number of Circuits	Channel-to-Channel Matching (ΔRon)	Multiplexer/Demultiplexer Circuit	Current - Leakage (IS(off)) (Max)	Package / Case [x]	Package / Case [x]

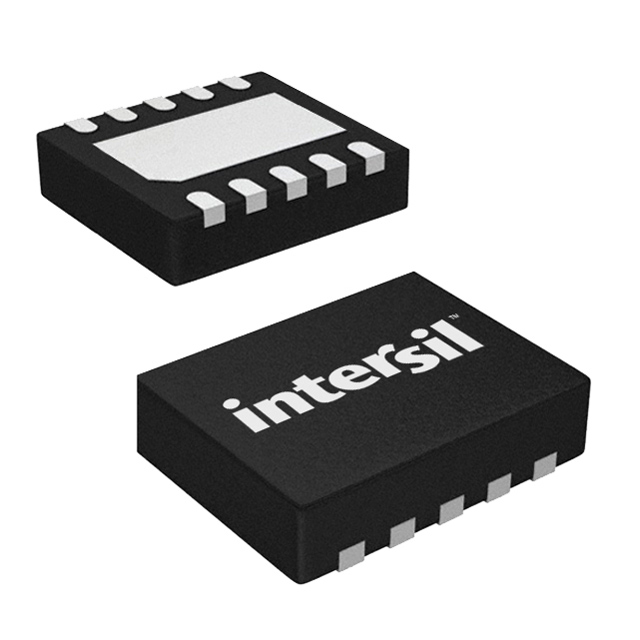

Renesas Electronics Corporation ISL84684IR-T	10-TDFN (3x3)	85 °C	-40 °C	SPDT	10-VFDFN Exposed Pad	50 ns	27 ns	1.65 V	3.6 V	500 mOhm	-85 dB	65 pF	65 pF	94 pC	Surface Mount	2	55 mOhm	2:1	4 nA
Renesas Electronics Corporation ISL84684IU	10-MSOP	85 °C	-40 °C	SPDT	10-MSOP 10-TFSOP	50 ns	27 ns	1.65 V	3.6 V	500 mOhm	-85 dB	65 pF	65 pF	94 pC	Surface Mount	2	55 mOhm	2:1	4 nA	3 mm	0.118 in
Renesas Electronics Corporation ISL84684IU-T	10-MSOP	85 °C	-40 °C	SPDT	10-MSOP 10-TFSOP	50 ns	27 ns	1.65 V	3.6 V	500 mOhm	-85 dB	65 pF	65 pF	94 pC	Surface Mount	2	55 mOhm	2:1	4 nA	3 mm	0.118 in
Renesas Electronics Corporation ISL84684IRZ	10-TDFN (3x3)	85 °C	-40 °C	SPDT	10-VFDFN Exposed Pad	50 ns	27 ns	1.65 V	3.6 V	500 mOhm	-85 dB	65 pF	65 pF	94 pC	Surface Mount	2	55 mOhm	2:1	4 nA
Renesas Electronics Corporation ISL84684IR	10-TDFN (3x3)	85 °C	-40 °C	SPDT	10-VFDFN Exposed Pad	50 ns	27 ns	1.65 V	3.6 V	500 mOhm	-85 dB	65 pF	65 pF	94 pC	Surface Mount	2	55 mOhm	2:1	4 nA
