105310 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 8POWER POS 2.5MM SOLDER ST TOP ENTRY THRU-HOLE NANO-FIT TRAY

Part	Style	Number of Positions Loaded	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Applications	Voltage Rating	Mated Stacking Heights	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Color	Shrouding	Contact Material	Connector Type	Mounting Type	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post [x]	Contact Finish - Mating	Features	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Material	Number of Positions
Molex 1053101308	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	30 Áin	0.76 Ám	Tin	-40 °C	105 ░C	Latch Holder	Black	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in	Gold	Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	8	Liquid Crystal Polymer (LCP)

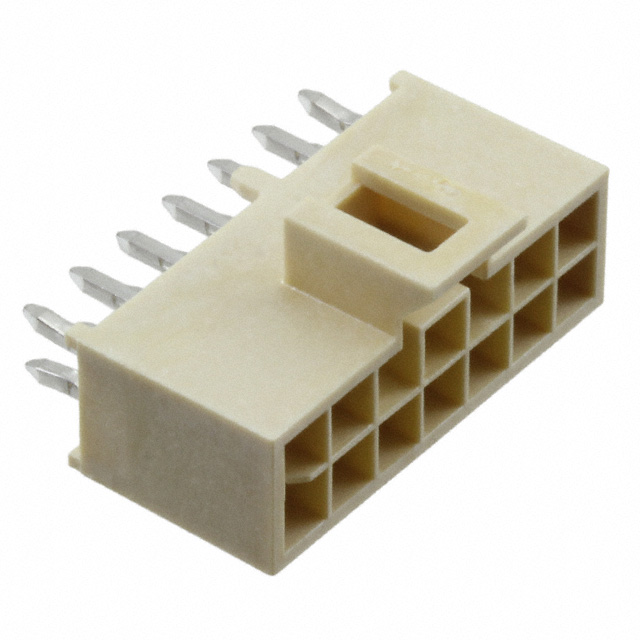

Molex 1053102314	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	30 Áin	0.76 Ám	Tin	-40 °C	105 ░C	Latch Holder	Natural	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in	Gold	Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	14	Liquid Crystal Polymer (LCP)

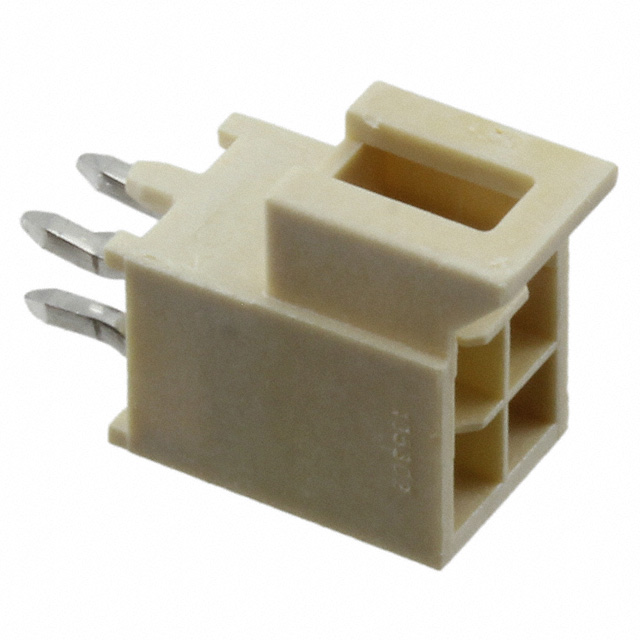

Molex 1053102304	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	30 Áin	0.76 Ám	Tin	-40 °C	105 ░C	Latch Holder	Natural	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in	Gold	Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	4	Liquid Crystal Polymer (LCP)

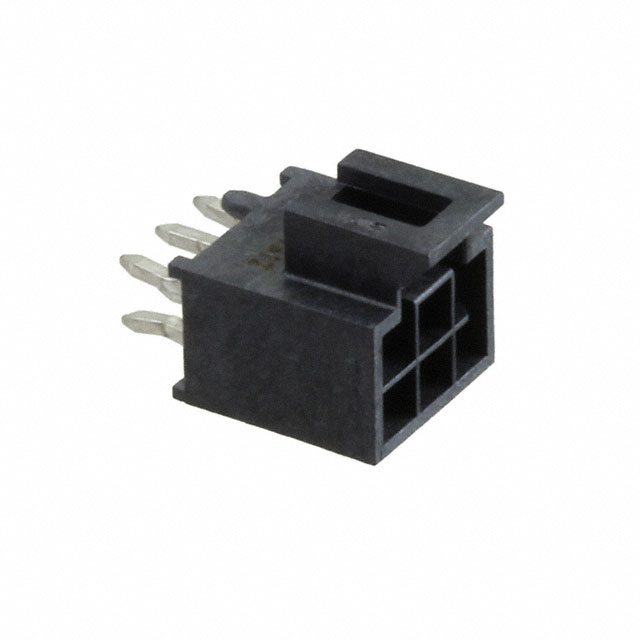

Molex 1053101106	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	59 Áin	1.5 Ám	Tin	-40 °C	105 ░C	Latch Holder	Black	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in		Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	6	Liquid Crystal Polymer (LCP)

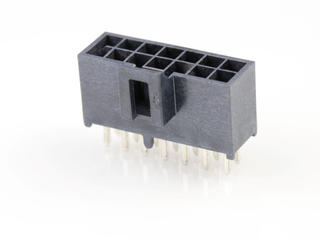

Molex 1053101214	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	15 µin	0.38 µm	Tin	-40 °C	105 ░C	Latch Holder	Black	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in	Gold	Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	14	Liquid Crystal Polymer (LCP)

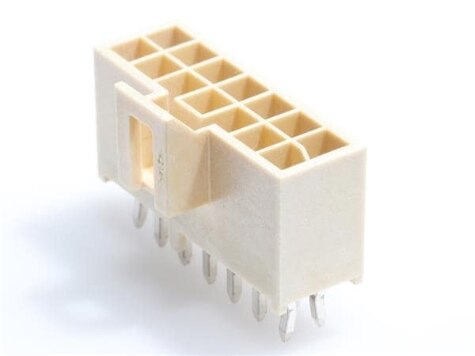

Molex 1053102214	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	15 µin	0.38 µm	Tin	-40 °C	105 ░C	Latch Holder	Natural	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in	Gold	Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	14	Liquid Crystal Polymer (LCP)
Molex 1053102212	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	15 µin	0.38 µm	Tin	-40 °C	105 ░C	Latch Holder	Natural	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in	Gold	Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	12	Liquid Crystal Polymer (LCP)

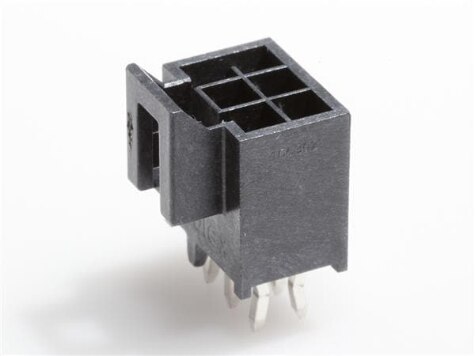

Molex 1053101306	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	30 Áin	0.76 Ám	Tin	-40 °C	105 ░C	Latch Holder	Black	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in	Gold	Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	6	Liquid Crystal Polymer (LCP)

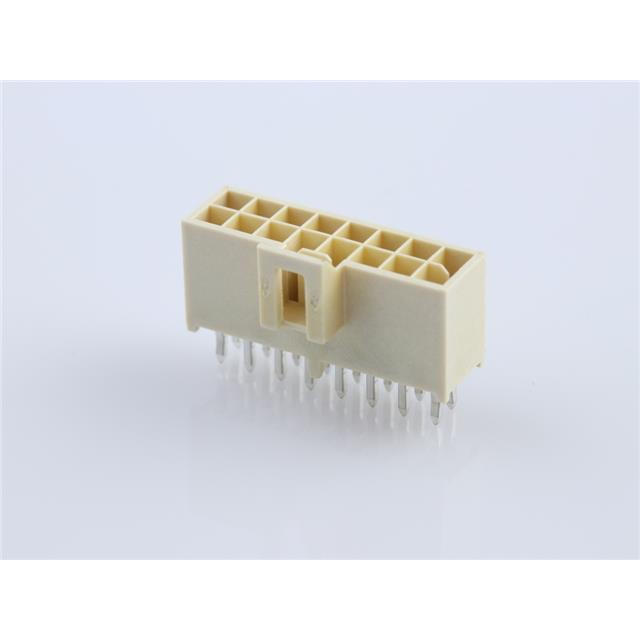

Molex 1053102116	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	59 Áin	1.5 Ám	Tin	-40 °C	105 ░C	Latch Holder	Natural	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in		Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin		Liquid Crystal Polymer (LCP)	16

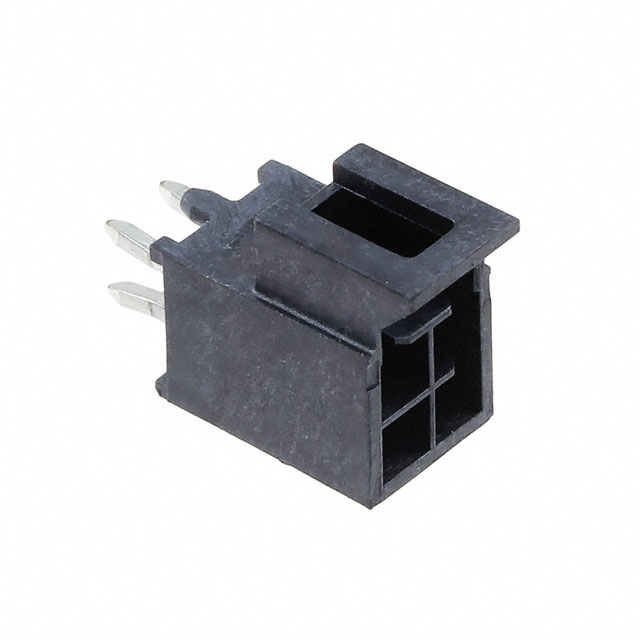

Molex 1053101304	Board to Cable/Wire	All	Male Pin	0.098 in	2.5 mm	Automotive General Purpose Industrial Medical Military Telecommunications	250 VDC	21.3 mm	Square	2	30 Áin	0.76 Ám	Tin	-40 °C	105 ░C	Latch Holder	Black	Shrouded - 4 Wall	Brass	Header	Through Hole	Kinked Pin Solder	2.5 mm	0.098 in	3.2 mm	0.126 in	Gold	Board Guide	0.356 in	9.05 mm	1.5 µm	59 µin	4	Liquid Crystal Polymer (LCP)
