GPTBRH Series
Manufacturer: ZF Electronics
Beta
⌘K

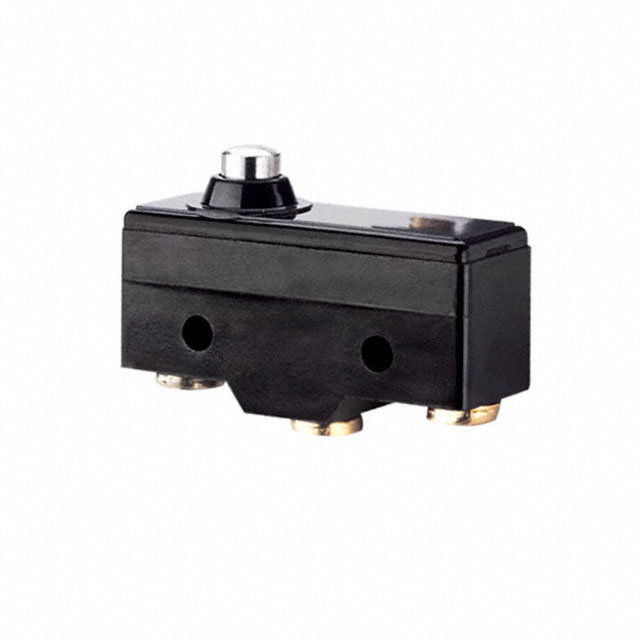

SWITCH SNAP ACTION SPDT 20A 125V
| Part | Mounting Type | Termination Style | Mechanical Life | Release Force | Operating Position | Operating Position | Actuator Type | Pretravel | Pretravel | Voltage Rating - AC | Circuit | Operating Force | Overtravel [custom] | Overtravel [custom] | Switch Function | Differential Travel | Differential Travel | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | Panel Mount | Screw Terminal | 20000000 Cycles | 201 gf | 1.266 in | 32.2 mm | Roller Plunger | 0.028 " | 0.7 mm | 125 V | SPDT | 649 gf | 0.141 " | 3.6 mm | On-Mom | 0.2 mm | 0.008 in | 20 A |
