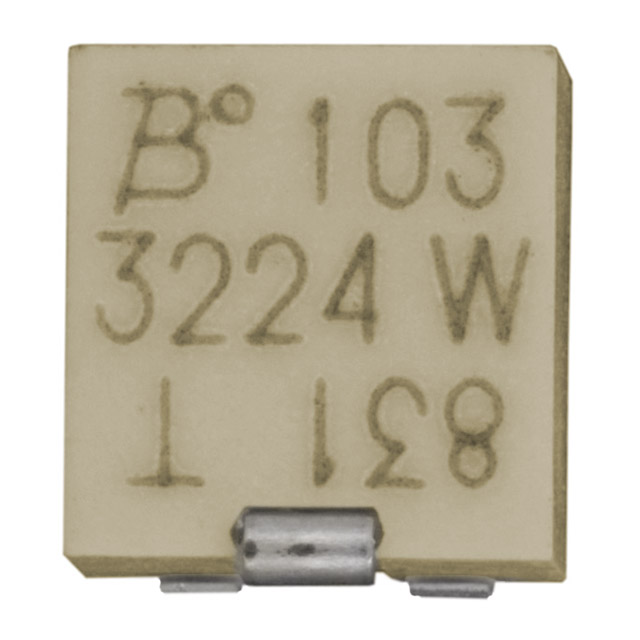

3224W Series

Catalog

TRIMMER-SMD 4MM SQ MT CERMET /TAPE & REEL - 7" REEL

Part	Resistive Material	Adjustment Type	Resistance	Power (Watts)	Power (Watts)	Number of Turns	Temperature Coefficient	Mounting Type	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Termination Style
Bourns Inc. 3224W-1-254E	Cermet	Top Adjustment	250000 Ohms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-1-500E	Cermet	Top Adjustment	50 Ohms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-1-253E	Cermet	Top Adjustment	25 kOhms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-1-205G	Cermet	Top Adjustment	2 MOhms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-2-204E	Cermet	Top Adjustment	200000 Ohms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-2-103E	Cermet	Top Adjustment	10000 Ohms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-1-200G	Cermet	Top Adjustment	20 Ohms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-1-501G	Cermet	Top Adjustment	0.5 kOhms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-1-101G	Cermet	Top Adjustment	100 Ohms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
Bourns Inc. 3224W-1-203E	Cermet	Top Adjustment	20 kOhms	0.25 W	0.25 W	12	100 ppm/°C	Surface Mount	10 %	0.138 in	4.8 mm	3.5 mm	0.189 "	J Lead
