6609940 Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Style	Current Rating - Filter	Voltage Rating - Appliance Inlet	Mounting Type	Approval Agency	Current Rating - Appliance Inlet	Termination	Termination	Termination	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Features	Switch Features	Filter Type	Fuse Holder, Drawer
TE Connectivity Corcom Filters 6-6609940-3	IEC 320-C14	6 A	120 VAC	Flange Panel Mount	CSA UL VDE	6 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	28.45 mm	54.1 mm	Conversion Clip Shielded Voltage Selector	Switch On-Off	Filtered (EMI RFI) - Commercial	Fuse Holder
TE Connectivity Corcom Filters 6-6609940-6	IEC 320-C14	6 A	120 VAC	Flange Panel Mount	CSA UL VDE	6 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	26.92 mm	54.1 mm	Conversion Clip Voltage Selector	Switch On-Off	Filtered (EMI RFI) - Commercial	Fuse Holder
TE Connectivity Corcom Filters 3-6609940-8	IEC 320-C14	3 A	120 VAC	Flange Panel Mount	CSA UL VDE	3 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	26.92 mm	54.1 mm	Voltage Selector	Switch On-Off	Filtered (EMI RFI) - Commercial	Twin Fused

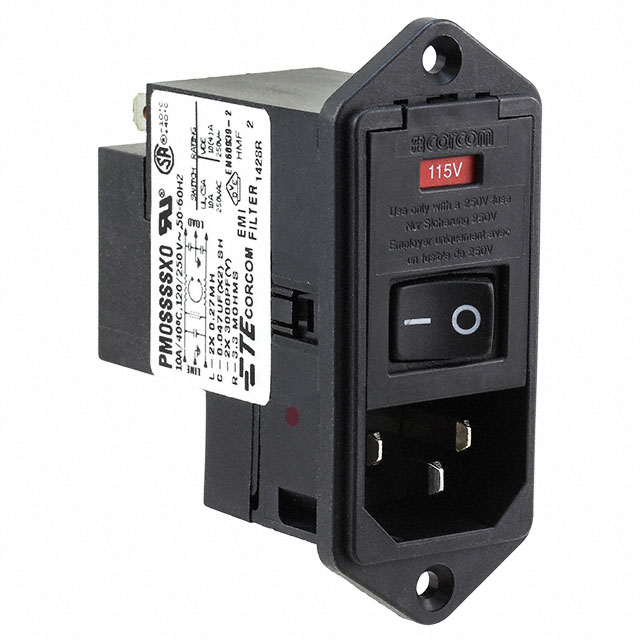

TE Connectivity Corcom Filters 1-6609940-0	IEC 320-C14	10 A	120 VAC	Flange Panel Mount	CSA UL VDE	10 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	26.92 mm	54.1 mm	Conversion Clip Voltage Selector	Switch On-Off	Filtered (EMI RFI) - Commercial	Fuse Holder
TE Connectivity Corcom Filters 8-6609940-6	IEC 320-C14	6 A	120 VAC	Flange Panel Mount	CSA UL VDE	6 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	28.45 mm	54.1 mm	Shielded	Switch On-Off	Filtered (EMI RFI) - Commercial	Twin Fused

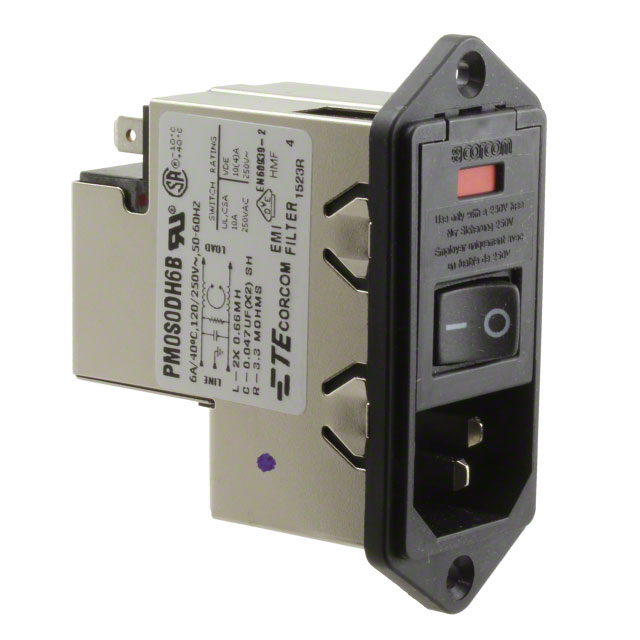

TE Connectivity Corcom Filters 7-6609940-6	IEC 320-C14	6 A	120 VAC	Flange Panel Mount	CSA UL VDE	6 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	28.45 mm	54.1 mm	Shielded	Switch On-Off	Filtered (EMI RFI) - Commercial Medical	Twin Fused
TE Connectivity Corcom Filters 2-6609940-3	IEC 320-C14	3 A	120 VAC	Flange Panel Mount	CSA UL VDE	3 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	28.45 mm	54.1 mm	Shielded Voltage Selector	Switch On-Off	Filtered (EMI RFI) - Commercial Medical	Twin Fused
TE Connectivity Corcom Filters 6-6609940-7	IEC 320-C14	10 A	120 VAC	Flange Panel Mount	CSA UL VDE	10 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	28.45 mm	54.1 mm	Shielded	Switch On-Off	Filtered (EMI RFI) - Commercial Medical	Twin Fused
TE Connectivity Corcom Filters 5-6609940-8	IEC 320-C14	10 A	120 VAC	Flange Panel Mount	CSA UL VDE	10 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	26.92 mm	54.1 mm	Conversion Clip Voltage Selector	Switch On-Off	Filtered (EMI RFI) - Commercial	Fuse Holder
TE Connectivity Corcom Filters 9-6609940-7	IEC 320-C14	6 A	120 VAC	Flange Panel Mount	CSA UL VDE	6 A	Quick Connect	0.187 "	4.7 mm	Receptacle Male Blades - Module	28.45 mm	54.1 mm	Conversion Clip Shielded	Switch On-Off	Filtered (EMI RFI) - Commercial Medical	Fuse Holder
