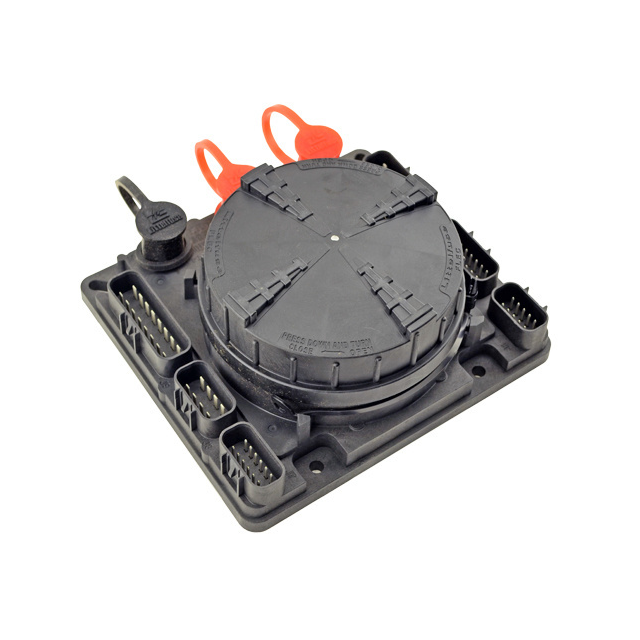

FLEC3000Z-0U Series
FLEC - Market Variant Unstuffed
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
FLEC - Market Variant Unstuffed
Key Features
• Rated for 16 V dc/32 V dc max and 12 V dc/24 V dc continuous
• Rated for 300 A (100 A per stud) maximum total continuous current
• Accepts up to 28 MINI® fuses (sold separately) and up to 18 ISO Micro relays (sold separately)
• Stud caps, fuse puller, hex nuts, washers, and a cover tether are included
Description
AI
Designed for primary power distribution, the FLEC™ Series Flexible Electrical Center Power Distribution Module (FLEC3000Z-0U) accommodates up to 28 MINI® fuses (sold separately) and up to 18 ISO Micro relays (sold separately) in a compact, sealed footprint. The internal printed circuit board (PCB) technologies used in the FLEC™ are highly reliable and reduce the risk of wiring faults. Plus, the use of connectorized interfaces, rather than hard-wired technologies, reduces factory assembly efforts. In addition, the FLEC™ sealed PDM carries an IP67 rating, which allows it to be mounted in locations susceptible to moisture and dirt without any adverse effects.
