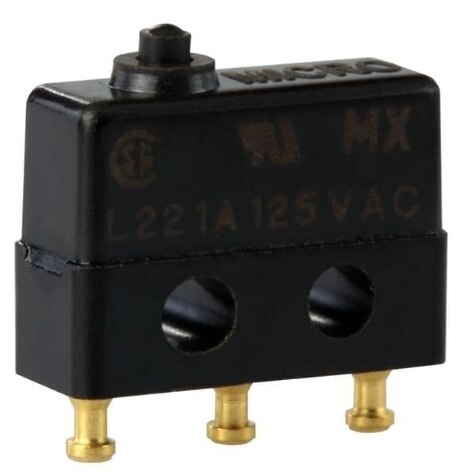

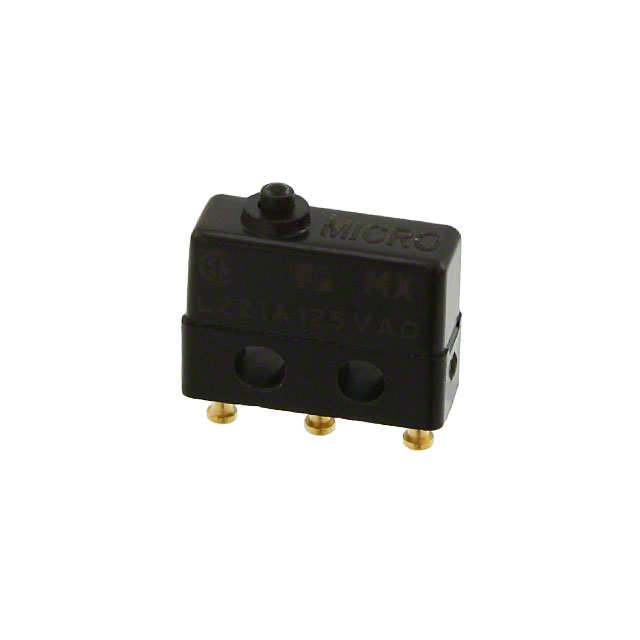

6SX7 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
BASIC / SNAP ACTION SWITCHES SUBMINIATURE BASICS SX SWITCHES
| Part | Differential Travel | Differential Travel | Release Force | Voltage Rating - DC | Operating Position | Operating Position | Actuator Type | Current Rating (Amps) | Overtravel [custom] | Overtravel [custom] | Mounting Type | Pretravel | Pretravel | Operating Force | Mechanical Life | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Voltage Rating - AC | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.05 mm | 0.002 in | 28 gf | 30 V | 8.13 mm | 0.32 " | Round (Pin Plunger) | 1 A | 0.004 in | 0.1 mm | Chassis Mount | 0.02 in | 0.5 mm | 141 gf | 1000000 Cycles | -53 °C | 204 °C | SPDT | 125 V | Solder Turret | On-Mom |
