R11400 Series

Catalog

SMB / STRAIGHT PLUG CLAMP TYPE C

Part	Voltage Rating	Dielectric Material	Mating Cycles	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Plating	Mounting Type	Number of Ports	Cable Group	Housing Color	Connector Type	Impedance	Center Contact Material	Frequency - Max [Max]	Contact Termination	Shield Termination	Fastening Type	Connector Style	Cable Group
Radiall USA, Inc. R114005133	335 V	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	Brass	Gold	Free Hanging (In-Line)	1	187 188 316 RG-179	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB
Radiall USA, Inc. R114003420W	250 V	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	Brass	Gold	Free Hanging (In-Line)	1	RG-178DS	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB
Radiall USA, Inc. R114003000W	250 V	Polytetrafluoroethylene (PTFE)	500	Gold	-55 C	100 °C	Brass	Gold	Free Hanging (In-Line)	1	RG-178	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB	196
Radiall USA, Inc. R114005133W	335 V	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	Brass	Gold	Free Hanging (In-Line)	1	187 188 316 RG-179	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB

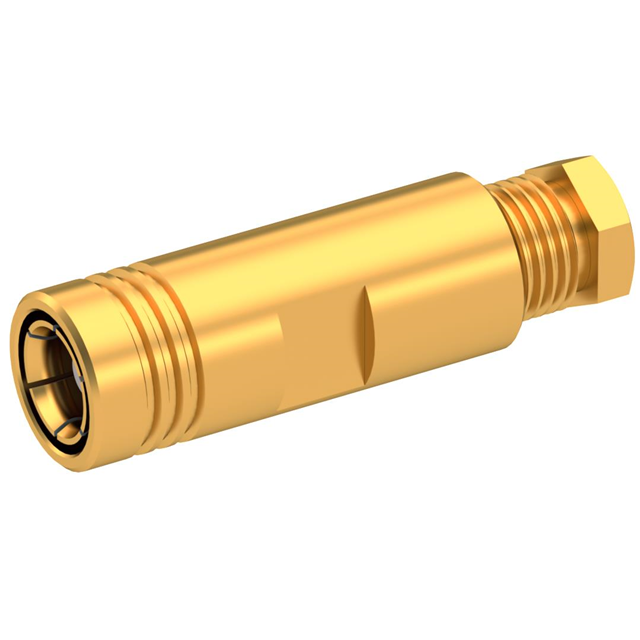

Radiall USA, Inc. R114003000	335 V	Polytetrafluoroethylene (PTFE)	500	Gold	-55 C	100 °C	Brass	Gold	Free Hanging (In-Line)	1	RG-178	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB	196
Radiall USA, Inc. R114003420	250 V	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	Brass	Gold	Free Hanging (In-Line)	1	RG-178DS	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB
Radiall USA, Inc. R114009000	335 V	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	Brass	Gold	Free Hanging (In-Line)	1	RG-180 195	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB
Radiall USA, Inc. R114005000	335 V	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	Brass	Gold	Free Hanging (In-Line)	1	179 187 188 316 RG-174	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB
Radiall USA, Inc. R114005000W	250 V	Polytetrafluoroethylene (PTFE)	500	Gold	-65 ░C	165 °C	Brass	Gold	Free Hanging (In-Line)	1	179 187 188 316 RG-174	Gold	Female Socket Plug	50 Ohms	Beryllium Copper	4 GHz	Solder	Clamp	Snap-On	SMB
