2105-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

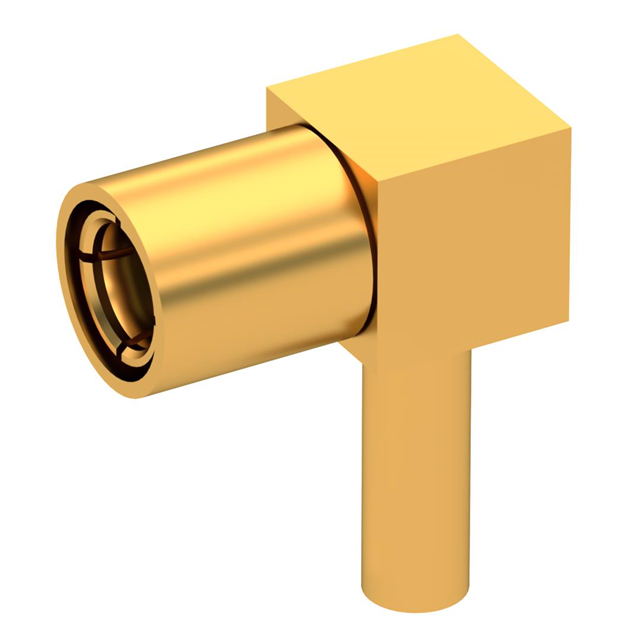

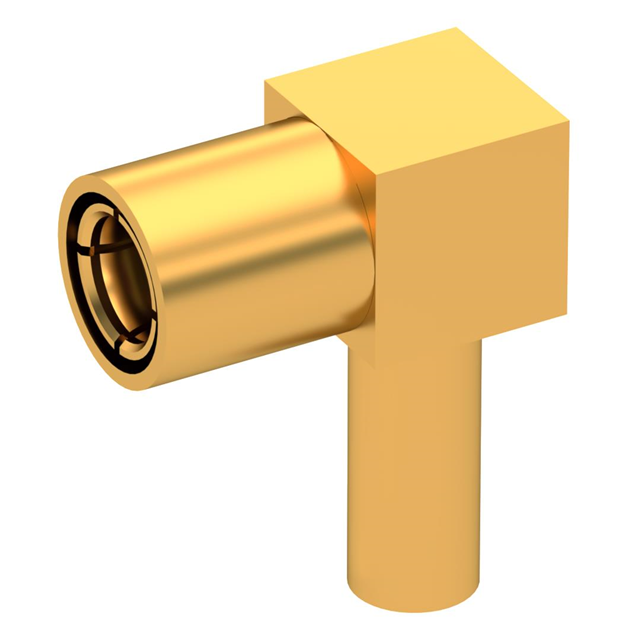

SMB F RA NA CR 2.6/50S
| Part | Body Material | Center Contact Plating | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Impedance | Housing Color | Contact Termination | Cable Group | Mounting Type | Frequency - Max [Max] | Number of Ports | Fastening Type | Center Contact Material | Connector Type | Shield Termination | Connector Style | Cable Group | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Gold | Gold | 500 | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Crimp | RG-174 RG-179 RG-316 | Free Hanging (In-Line) Right Angle | 4 GHz | 1 | Snap-On | Beryllium Copper | Female Socket Plug | Crimp | SMB | ||
 Radiall USA, Inc. | Brass | Gold | Gold | 500 | -65 ░C | 165 °C | 250 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Crimp | RG-178 | Free Hanging (In-Line) Right Angle | 4 GHz | 1 | Snap-On | Beryllium Copper | Female Socket Plug | Crimp | SMB | 196 | |
 Radiall USA, Inc. | Brass | Gold | Gold | 500 | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Crimp | RG-316 Double Braid | Free Hanging (In-Line) Right Angle | 4 GHz | 1 | Snap-On | Beryllium Copper | Female Socket Plug | Crimp | SMB | 0.6 dB | |
 Radiall USA, Inc. | Brass | Gold | Gold | 500 | -65 ░C | 165 °C | 335 V | Polytetrafluoroethylene (PTFE) | 50 Ohms | Gold | Crimp | RD-316 | Free Hanging (In-Line) Right Angle | 4 GHz | 1 | Snap-On | Beryllium Copper | Female Socket Plug | Crimp | SMB |
