TXB-86 Series

Catalog

BUZZER PIEZO 33MM PNL MNT

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Driver Circuitry	Mounting Type	Operating Mode	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Frequency	Technology	Approval Agency	Sound Pressure Level (SPL)	Port Location	Current - Supply [Max]	Current - Supply [Min]	Input Type	Ingress Protection	Termination	Termination	Termination
Floyd Bell Inc TXB-86-515-W(F)	29.97 mm	1.18 in	Indicator Internally Driven	Panel Mount	Fast Pulse	5 VDC	15 V	1.299 in	33 mm	2.9 kHz	Piezo	UL UR	103 dB	Top	50 mA	10 mA	DC	IP68 - Dust Tight Waterproof	Wire Leads
Floyd Bell Inc TXB-86-515-S(F)	29.97 mm	1.18 in	Indicator Internally Driven	Panel Mount	Fast Pulse	5 VDC	15 V	1.299 in	33 mm	2.9 kHz	Piezo	UL UR	103 dB	Top	50 mA	10 mA	DC	IP68 - Dust Tight Waterproof	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm
Floyd Bell Inc TXB-86-515-W(S)	29.97 mm	1.18 in	Indicator Internally Driven	Panel Mount	Pulse Slow	5 VDC	15 V	1.3 in	33.02 mm	2.9 kHz	Piezo	UL UR	103 dB	Top	50 mA	10 mA	DC	IP68 - Dust Tight Waterproof	Wire Leads

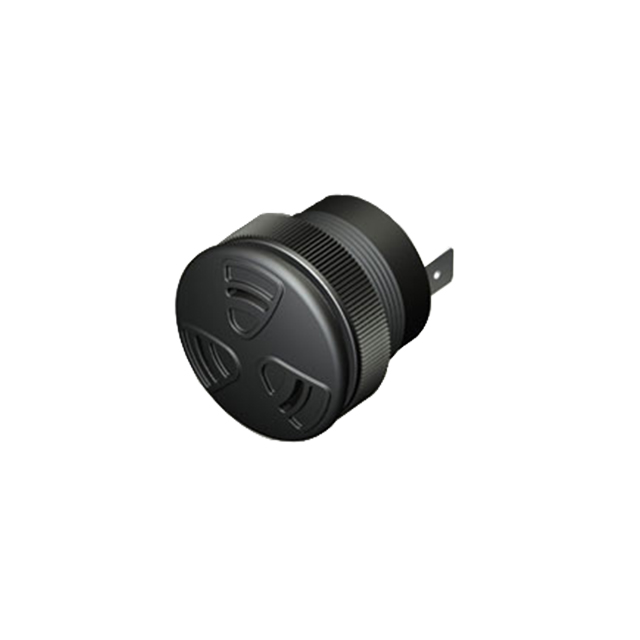

Floyd Bell Inc TXB-86-515-Q(F)	29.97 mm	1.18 in	Indicator Internally Driven	Panel Mount	Fast Pulse	5 VDC	15 V	1.3 in	33.02 mm	2.9 kHz	Piezo	UL UR	103 dB	Top	50 mA	10 mA	DC	IP68 - Dust Tight Waterproof	Quick Connect Tab	0.25 "	6.35 mm
Floyd Bell Inc TXB-86-515-S(S)	29.97 mm	1.18 in	Indicator Internally Driven	Panel Mount	Pulse Slow	5 VDC	15 V	1.3 in	33.02 mm	2.9 kHz	Piezo	UL UR	103 dB	Top	50 mA	10 mA	DC	IP68 - Dust Tight Waterproof	Screw Terminal Quick Connect Tab	0.25 "	6.35 mm
Floyd Bell Inc TXB-86-515-Q(S)	29.97 mm	1.18 in	Indicator Internally Driven	Panel Mount	Pulse Slow	5 VDC	15 V	1.299 in	33 mm	2.9 kHz	Piezo	UL UR	103 dB	Top	50 mA	10 mA	DC	IP68 - Dust Tight Waterproof	Quick Connect Tab	0.25 "	6.35 mm
