78218 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

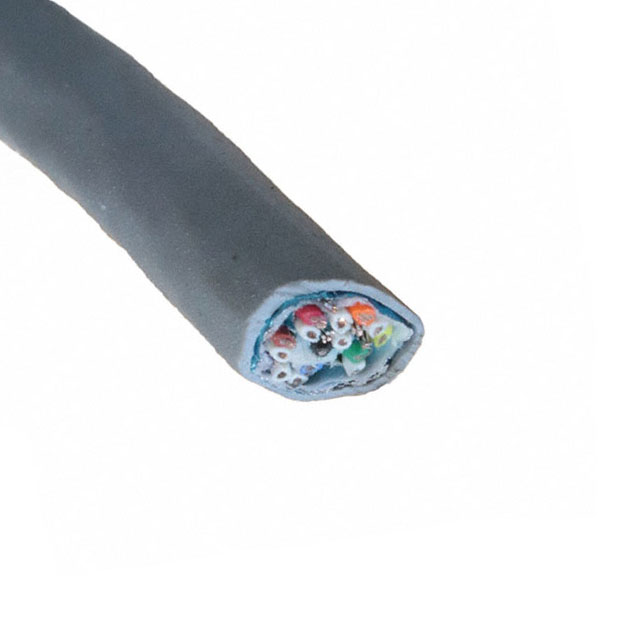

ECOGEN ECOCABLE MINI 26AWG 8PR 300V IND/O FOIL MPPE 78218 SL 199 BULK FT
| Part | Shield Coverage | Shield Material | Length [x] | Length [x] | Number of Conductors | Ratings | Conductor Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket Color | Voltage | Conductor Insulation | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 300 mm | 1 ' | 16 | ISO 10993 UL Style 21460 | Copper Tinned | 0.381 mm | 0.015 in | Polyphenylene Ether Modified (mPPE) | 80 °C | -40 C | 19 | 38 | Foil | 26 AWG | 0.252 in | 6.4 mm | Biological Compatibility Drain Wire Rip Cord | Slate | 300 VDC | Polyphenylene Ether Modified (mPPE) | Multi-Pair |
 ALPHA WIRE | 100 % | Aluminum | 30.5 m | 100 ft | 16 | ISO 10993 UL Style 21460 | Copper Tinned | 0.381 mm | 0.015 in | Polyphenylene Ether Modified (mPPE) | 80 °C | -40 C | 19 | 38 | Foil | 26 AWG | 0.252 in | 6.4 mm | Biological Compatibility Drain Wire Rip Cord | Slate | 300 VDC | Polyphenylene Ether Modified (mPPE) | Multi-Pair |
