Ultra-Pod 187 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ULTRA-POD 187 ASY REC 18-14 AWG TPBR

Part	Mounting Type	Color	Contact Finish	Contact Material	Termination	Tab Thickness	Tab Thickness	Terminal Type	Gender	Tab Width [x]	Tab Width [x]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Tab Length [x]	Tab Length [x]
TE Connectivity AMP Connectors 521601-2	Free Hanging (In-Line) Right Angle	White	Tin	Brass	Crimp	0.81 mm	0.032 in	Angled - 90° Flag	Female	0.187 in	4.75 mm	Fully Insulated	20 AWG	14 AWG

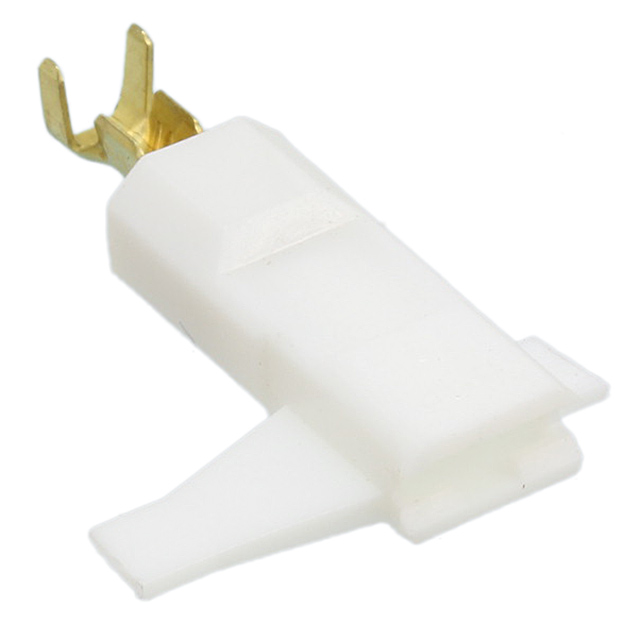

TE Connectivity AMP Connectors 521284-1	Free Hanging (In-Line)	Natural		Brass	Crimp	0.81 mm	0.032 in	Standard	Female	0.187 in	4.75 mm	Fully Insulated	20 AWG	16 AWG	0.13 "	0.09 in	2.29 mm	3.3 mm	27.56 mm	1.085 in
TE Connectivity AMP Connectors 521600-2	Free Hanging (In-Line) Right Angle	Natural	Tin	Brass	Crimp	0.81 mm	0.032 in	Angled - 90° Flag	Female	0.187 in	4.75 mm	Fully Insulated	22 AWG	17.5 AWG	0.11 "	0.06 in	1.52 mm	2.79 mm
TE Connectivity AMP Connectors 1969133-2	Free Hanging (In-Line)	White	Tin	Brass	Crimp	0.51 mm	0.02 in	Angled - 90° Flag	Female			Mating End Insulated	18 AWG	14 AWG							0.15 in	3.81 mm	2.79 mm	0.11 in	4.75 mm	0.187 in
TE Connectivity AMP Connectors 520982-8	Free Hanging (In-Line)	Black		Brass	Crimp	0.81 mm	0.032 in	Standard	Female	0.187 in	4.75 mm	Fully Insulated	20 AWG	16 AWG	0.13 "	0.09 in	2.29 mm	3.3 mm	27.56 mm	1.085 in
TE Connectivity AMP Connectors 521212-2	Free Hanging (In-Line)	Natural	Tin	Brass	Crimp	0.51 mm	0.02 in	Standard	Female	0.187 in	4.75 mm	Fully Insulated	18 AWG	14 AWG					28.37 mm	1.117 in	0.18 in	4.57 mm	2.79 mm	0.11 in

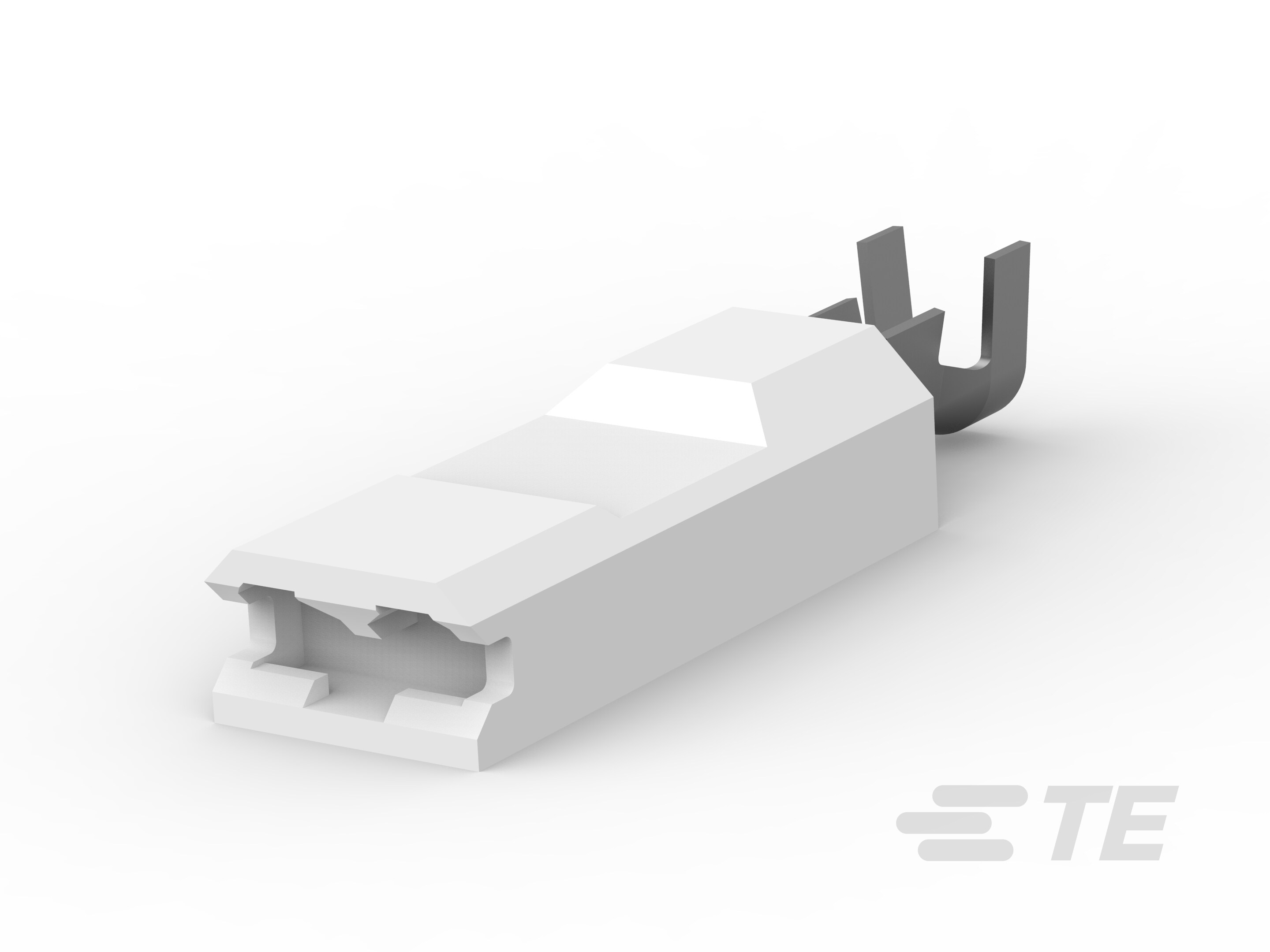

TE Connectivity AMP Connectors 521838-2	Free Hanging (In-Line)	Natural	Tin	Brass	Crimp	0.51 mm	0.02 in	Standard	Female	0.187 in	4.75 mm	Fully Insulated	20 AWG	16 AWG					27.56 mm	1.085 in
TE Connectivity AMP Connectors 1969107-2	Free Hanging (In-Line)	White	Tin	Brass	Crimp	0.81 mm	0.032 in	Standard	Female	0.187 in	4.75 mm	Fully Insulated	22 AWG	17.5 AWG	0.11 "	0.06 in	1.52 mm	2.79 mm	17.27 mm	0.68 "
TE Connectivity AMP Connectors 521596-2	Free Hanging (In-Line) Right Angle	Natural	Tin	Brass	Crimp	0.51 mm	0.02 in	Angled - 90° Flag	Female	0.187 in	4.75 mm	Fully Insulated	22 AWG	17.5 AWG	0.11 "	0.06 in	1.52 mm	2.79 mm

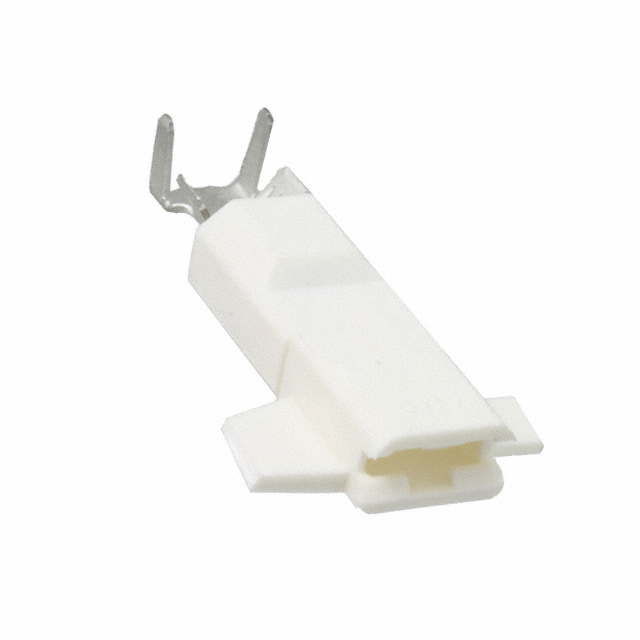

TE Connectivity AMP Connectors 521995-2	Free Hanging (In-Line)	White	Tin	Brass	Crimp	0.51 mm	0.02 in	Standard	Female	0.187 in	4.75 mm	Mating End Insulated	20 AWG	16 AWG					27.56 mm	1.085 in	0.21 "	5.33 mm	2.67 mm	0.105 "
