725-075 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 75POS 0.100

Part	Material - Insulation	Termination Rows	Card Type	Number of Positions/Bay/Row	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Contact Finish	Contact Type	Termination	Read Out	Number of Rows	Color	Contact Material
EDAC Inc. 725-075-540-101	Polyester Thermoplastic	1	Non Specified - Single Edge	75	75	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	Gold	Cantilever	Press-Fit Wire Wrap	Single	1	Black	Copper Alloy
EDAC Inc. 725-075-541-101	Polyester Thermoplastic	1	Non Specified - Single Edge	75	75	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	Gold	Cantilever	Press-Fit Wire Wrap	Single	1	Black	Copper Alloy

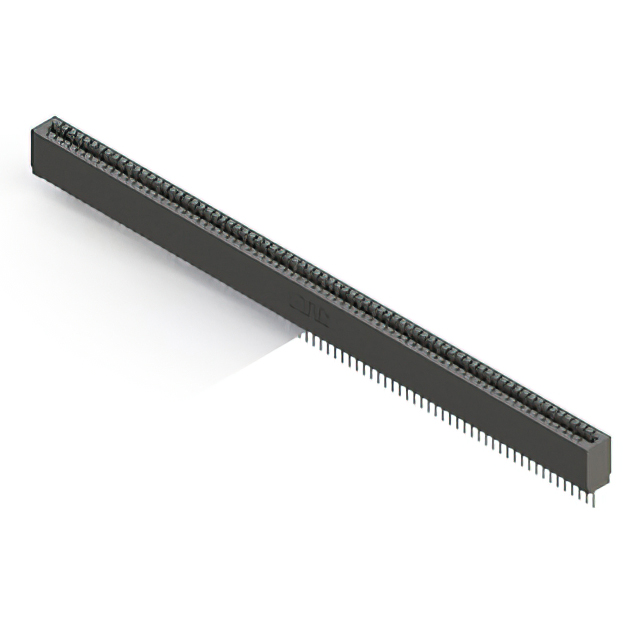

EDAC Inc. 725-075-522-101	Polyester Thermoplastic	1	Non Specified - Single Edge	75	75	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	Gold	Cantilever	Press-Fit	Single	1	Black	Copper Alloy
EDAC Inc. 725-075-525-101	Polyester Thermoplastic	1	Non Specified - Single Edge	75	75	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	Gold	Cantilever	Press-Fit	Single	1	Black	Copper Alloy

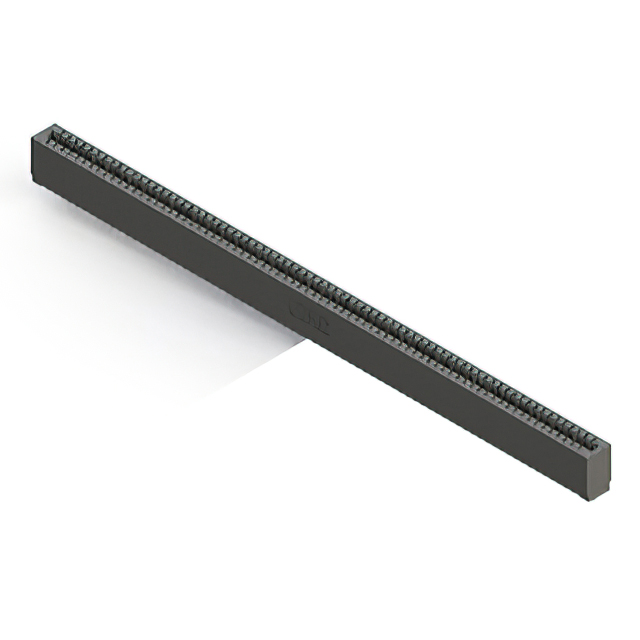

EDAC Inc. 725-075-520-101	Polyester Thermoplastic	1	Non Specified - Single Edge	75	75	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	Gold	Cantilever	Press-Fit	Single	1	Black	Copper Alloy
EDAC Inc. 725-075-545-101	Polyester Thermoplastic	1	Non Specified - Single Edge	75	75	30 Áin	0.76 Ám	0.1 "	2.54 mm	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	Gold	Cantilever	Press-Fit Wire Wrap	Single	1	Black	Copper Alloy
