MM2 Series

Catalog

RF TXRX MOD ISM<1GHZ THCHAS MNT

Part	Package / Case	Sensitivity	RF Family/Standard	Data Rate	Voltage - Supply	Serial Interfaces	Mounting Type	Frequency (Min)	Frequency (Max)	Current - Transmitting	Current - Receiving	Antenna Type	Modulation	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)

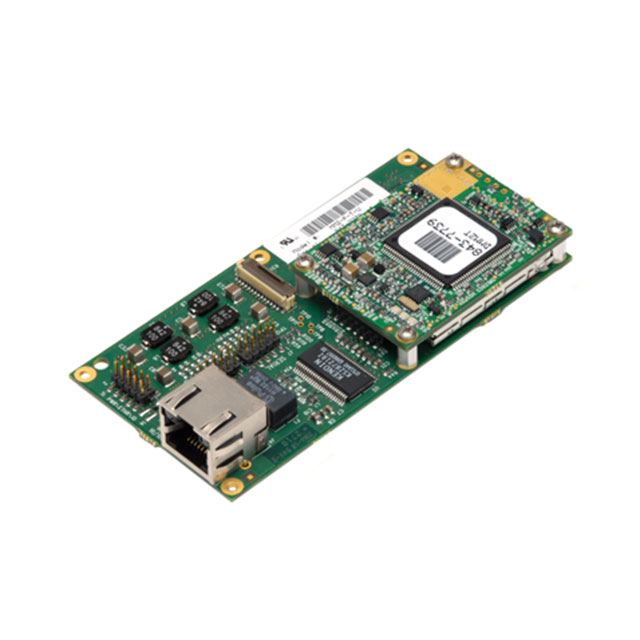

FreeWave Technologies MM2-P-T-U	Module	-108 dBm	General ISM < 1GHz	153.6 kbps	5 VDC	Ethernet	Chassis Mount	902 MHz	928 MHz	850 mA	205 mA	Integrated Trace	GFSK	-40 °C	85 °C
FreeWave Technologies MM2-MR-R-SR	Module	-107 dBm	General ISM < 1GHz	153.6 kbps			Chassis Mount	902 MHz	928 MHz	900 mA	100 mA	Integrated Trace	GFSK	-40 °C	85 °C	6.5 VDC	30 VDC
FreeWave Technologies MM2-MR-R-U	Module	-107 dBm	General ISM < 1GHz	153.6 kbps			Chassis Mount	902 MHz	928 MHz	900 mA	100 mA	Integrated Trace	GFSK	-40 °C	85 °C	6.5 VDC	30 VDC
FreeWave Technologies MM2-P-T-SR007	Module	-108 dBm	General ISM < 1GHz	153.6 kbps	5 VDC	Ethernet Serial TTL	Chassis Mount	902 MHz	928 MHz	850 mA	205 mA	Integrated Trace	GFSK	-40 °C	85 °C
FreeWave Technologies MM2-P-T-U-SR001	Module	-108 dBm	General ISM < 1GHz	153.6 kbps	5 VDC	Ethernet	Chassis Mount	902 MHz	928 MHz	850 mA	205 mA	Integrated Trace	GFSK	-40 °C	85 °C
FreeWave Technologies MM2-LV-T-LF	Module	-108 dBm	General ISM < 1GHz	153.6 kbps	3.5 V	Serial TTL	Chassis Mount	902 MHz	928 MHz	1.175 A	125 mA	Chip Integrated	GFSK	-40 °C	85 °C

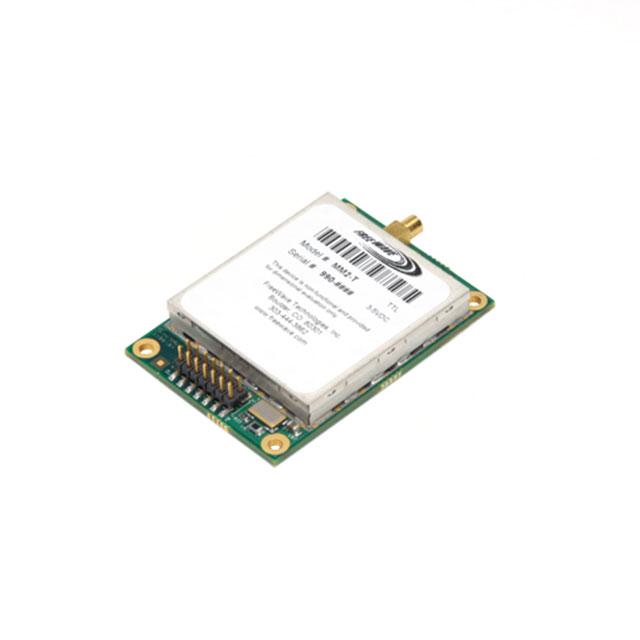

FreeWave Technologies MM2-T-U	Module	-108 dBm	General ISM < 1GHz	153.6 kbps	5 VDC	Serial TTL	Chassis Mount	902 MHz	928 MHz	855 mA	90 mA	Chip Integrated	GFSK	-40 °C	85 °C
FreeWave Technologies MM2-T-RX	Module	-108 dBm	General ISM < 1GHz	153.6 kbps	5 VDC	Serial TTL	Chassis Mount	902 MHz	928 MHz	855 mA	90 mA	Chip Integrated	GFSK	-40 °C	85 °C
