13C3000 Series

Catalog

INDUSTRIAL PRESSURE SENSORS JZ STAINLESS PRESS

Part	Port Size	Port Size	Port Size	Output [Max]	Output [Min]	Output Type	Package / Case	Voltage - Supply	Termination Style	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Operating Pressure	Operating Pressure	Pressure Type	Port Size	Applications
Honeywell Sensing and Productivity Solutions 13C3000PS5K	Male NPT	0.25 "	0.25 in	102 mV	98 mV	Wheatstone Bridge	Cylinder Threaded	15 VDC	Flex Cable	Threaded	125 °C	-40 C	0.25 %	62052.82 kPa	9000 PSI	Temperature Compensated	20684.27 kPa	3000 PSI	Sealed Gauge

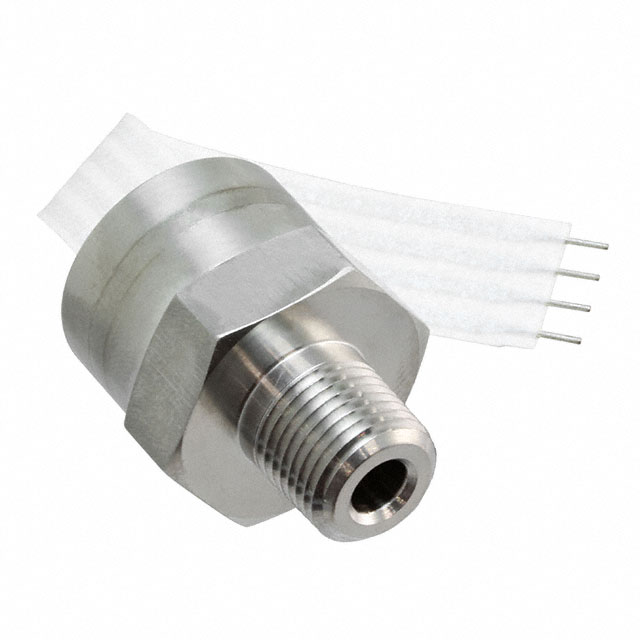

Honeywell Sensing and Productivity Solutions 13C3000PA4K	Female NPT		3.18 mm	102 mV	98 mV	Analog Voltage	Cylinder Threaded	15 VDC	PC Pin	Threaded	125 °C	-40 C		68947.57 kPa	10000 PSI	Temperature Compensated	20684.27 kPa	3000 PSI		0.125 "	Industrial Automation
