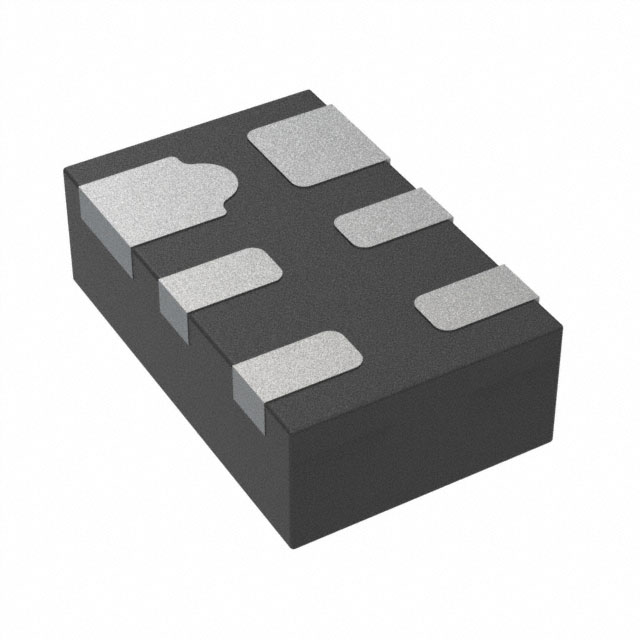

SP3401-02UTG Series

28KV 0.6pF 3.3V 10A uDFN-6 TVS Array

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

28KV 0.6pF 3.3V 10A uDFN-6 TVS Array

Part	Supplier Device Package	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Type	Qualification	Mounting Type	Power Line Protection	Voltage - Reverse Standoff (Typ)	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Unidirectional Channels	Package / Case	Current - Peak Pulse (10/1000µs)
Littelfuse/Commercial Vehicle Products SP3401-02UTG	6-µDFN (1.6x1)	0.8 pF	9 V	Ethernet USB 3.1	Zener	AEC-Q101	Surface Mount		3.3 V	Automotive	-40 °C	125 °C	6.5 V	2	6-UFDFN	10 A

Catalog

28KV 0.6pF 3.3V 10A uDFN-6 TVS Array

Key Features

• ESD, IEC 61000-4-2, ±18kV contact, ±30kV air

• EFT, IEC 61000-4-4, 80 A (tP=5/50ns)

• Lightning, IEC 61000- 4-5 2nd edition, 10 A (tP=8/20μs)

• Low capacitance of 0.35pF (TYP) per I/O

• Low leakage current of 1nA (TYP) at 3.3V

• Small form factor μDFN (JEDEC MO-229) package provides flow through routing to simplify PCB layout

• AEC-Q101 qualified

• Moisture Sensitivity Level(MSL -1)

• Lead-free, halogen-free, and RoHS compliant

Description

SP3401-02UTG is specifically designed to protect high-speed interfaces against ElectroStatic Discharge (ESD), such as DisplayPort interfaces and USB 3.1 Gen 1. The signal line is protected by a TVS diode offering low line capacitance of 0.35 pF typical. SP3401 can safely absorb repetitive ESD strikes up to ±18 kV contact exceeding IEC 61000-4-2, level 4 ( ±8kV contact discharge). Excellent low capacitance, clamping capability, low leakage, and fast response time make this parts an ideal solution for protecting high speed data lines.
